Industrial Tilt Table

Industrial Tilt Table - Pallet Tilter - BEM1

Beacon® BEM1 Series

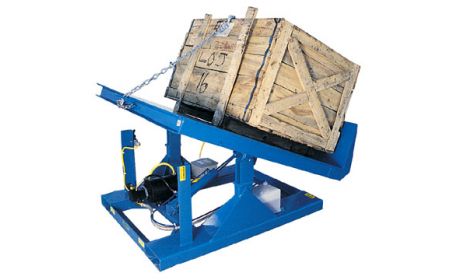

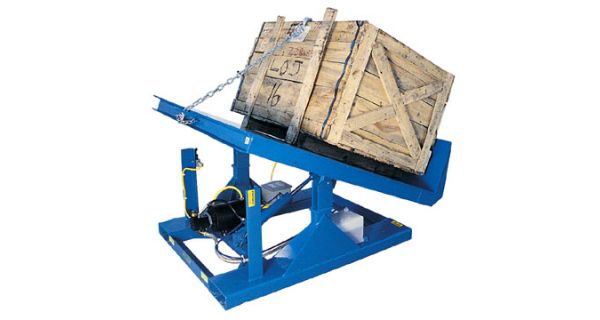

The incline Industrial Tilt Table enables easier loading of crates, pallets, baskets, or boxes by tilting them 45 degrees (BEM1-200 models) or 90 degrees (BEM1-500 models). This Pallet Tilter features an industrial-quality, 56-frame, 2 Hp motor. All models come standard with a 24 V push-button hand control.
Starting at: $5,132.39

See chart below and click a model number

Product Details

  • Construction: These products feature all-welded steel construction.
  • Size: Platform sizes range from 42" wide x 50" long to 60" wide x 50" long.
  • Electrical: 460V AC, 3 Phase, 60 Hertz is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge).
  • Color: Industrial Tilt Table models are painted Beacon Blue, but custom finishes are available upon request.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
  • Operation: BEM1-500 units must be lagged to the floor for operation.
  • Capacity: Units have capacities of 2,000, 4,000, or 6,000 lbs.
  • Standard: Units minimize pinch points in order to comply with OSHA requirements. BEM1-200 units have a 12" high lip, while BEM1-500 models feature a 24" lip to secure materials.
  • Options: Industrial Tilt Table options include foot treadle control air powered reciprocating.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: All lead times are approximate and are only estimates with no guarantee to a ship date.
  • BEM1-500-4250-2360° View
  • BEM1-500-4848-2360° View
  • BEM1-500-4848-6360° View
  • BEM1-500-6050-6360° View

Documents



Industrial Tilt Table - BEM1 Series
Model No. Platform Size (W x L) Capacity (LBS) Degree of Tilt (in Deg.) Horizontal Height Price
1) BEM1-200-4250-2 42"x50" 2,000 45 24" $5,132.39
2) BEM1-200-6050-2 60"x50" 2,000 45 24" $5,253.21
3) BEM1-500-4250-2 42"x50" 2,000 90 24" $5,787.41
4) BEM1-500-4848-2 48"x48" 2,000 90 24" $5,689.52
5) BEM1-500-6050-2 60"x50" 2,000 90 24" $5,760.86

6) BEM1-200-4250-4 42"x50" 4,000 45 24" $5,427.55
7) BEM1-200-6050-4 60"x50" 4,000 45 24" $5,550.91
8) BEM1-500-4250-4 42"x50" 4,000 90 24" $6,545.58
9) BEM1-500-4848-4 48"x48" 4,000 90 24" $6,604.05
10) BEM1-500-6050-4 60"x50" 4,000 90 24" $6,668.91

11) BEM1-200-4250-6 42"x50" 6,000 45 24" $5,613.26
12) BEM1-200-4848-6 48"x48" 6,000 45 24" $5,748.05
13) BEM1-200-6050-6 60"x50" 6,000 45 24" $5,824.45
14) BEM1-500-4250-6 42"x50" 6,000 90 24" $7,015.00
15) BEM1-500-4848-6 48"x48" 6,000 90 24" $7,081.12
16) BEM1-500-6050-6 60"x50" 6,000 90 24" $7,166.37
