Tilt Platform

Tilt Platform - Hydraulic Tilter - BEHTT Series

Beacon® BEHTT Series

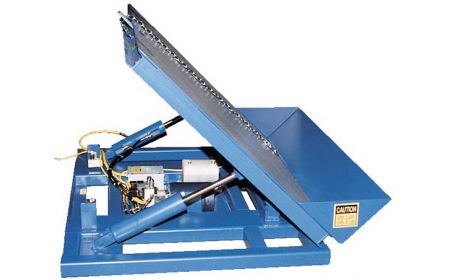

This stable Tilt Platform is designed to tilt materials to an ergonomically proper work level. This Hydraulic Tilter features rugged durability along with a low platform height. A 12" lip without side gussets allows the tilt table to be loaded on 3 sides. This unit has a maximum tilt of 45 degrees. The sliding series features a sliding link-tilt design for optimum stability while taking up minimal space. The load's center of gravity stays close to the frame's center.
Starting at: $5,086.55

See chart below and click a model number

Product Details

  • Construction: The series is constructed of heavy-duty steel.
  • Size: These units feature a 48" wide x 48" long platform. The hinge model has a 10" level height, while the sliding model has an 8" level height.
  • Electrical: 460 V AC, 3 Phase, 60 Hertz, 2 HP is Standard. (Optional electrical changes are available including Voltage, Phase and Hertz at an additional charge). Unit with a 24 V, 2-button, hand-held pendant control for tilt functions.
  • Weight: Tilt Platform models weigh 1,427 or 1,449 lbs.
  • Usage: This item is made to order; therefore, delivery times are not guaranteed. Production schedules may fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary and lead times are quoted as approximate only. A signed approval drawing is required prior to production. Freight, site preparation, installation and training are not included. The customer is responsible for ensuring the correctness of fit.
  • Operation: A pressure plate pump with counterbalanced valves and modulated flow control is used with an application-specific manifold to increase efficiency.
  • Capacity: This series has a 4,000-lb. capacity.
  • Options: Tilt Platform has an optional accordion skirt available; contact Beacon for details.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Side gussets are required when using the optional accordion skirt.

Documents



Tilt Platform - BEHTT Series
Model No. Design Platform Size (W x L) Capacity (LBS) Lowered Height Degree of Tilt Price
1) BEHTT Hinge 48"x48" 4,000 10" 45 $5,086.55
2) BEHTT-L Sliding 48"x48" 4,000 8" 45 $5,455.58
