Ball Transfer Table

Name: Ball Transfer Table
Brand: Beacon
Price: 755.48 USD
Availability: InStock

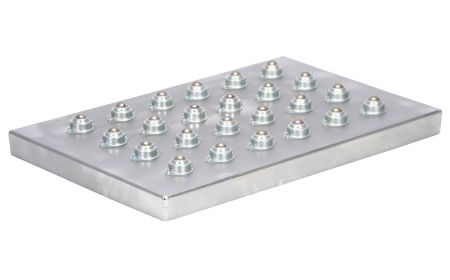

Ball Transfer Table - Lift Table Conveyor Top - BBALL series

Beacon® BBALL Series

This multi-directional Ball Transfer Table top can be attachable to an optional mechanical and hydraulic lift table or post table. This conveyor top unit can bolt directly onto a stationary or lifting platform. Finish includes a chrome base for durability.

Starting at: $755.48

See chart below and click a model number

Product Details

Construction: Steel Construction, assembled with 4" ball centers.
Size: Ball Transfer Table Tops are available in a variety of sizes ranging from 18" wide x 28" long to 30" wide x 60" long.
Color: All models come complete with a chrome finish.
Capacity: These units have a capacity per ball of 75 lbs.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note: This unit is shown with a Beacon scissor cart (sold separately).

Documents

Ball Transfer Table - BBALL Series
Model No.	Overall Width	Overall Length	Ball Center Spacing	Capacity per Ball (LBS)	Number of Balls	Finish	Net Wt. (Pounds)	Price
1) BBALL-1828	18"	28"	4"	75	24	Chrome	24	$755.48
2) BBALL-2036	20"	36"	4"	75	32	Chrome	71	$868.71

3) BBALL-2448	24"	48"	4"	75	72	Chrome	125	$1,360.95
4) BBALL-4048	40"	48"	4"	75	105	Chrome	172	$1,803.57
5) BBALL-3060	30"	60"	4"	75	120	Chrome	202	$1,706.96
