Expanding Roller Conveyor

Expanding Roller Conveyor - BEXCNV-R Series

Beacon® BEXCNV series

This Expanding Roller Conveyor is used at shipping facilities and at the end of production lines. This unit is engineered to handle large, awkward loads to simplify the shipping process.
Starting at: $4,758.36

See chart below and click a model number

Product Details

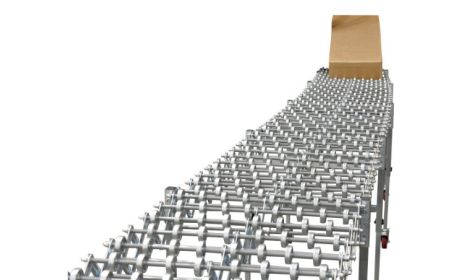

  • Construction: Expanding Roller Conveyor features a strong construction for handling large and heavy packages. The BEXCNV-S-24-24 features a skate top design, the BEXCNV-R-24-24 features a roller top design.
  • Size: BEXCNV-S-24-24 features an overall size of 25” wide x 308" long x 43" high. The BEXCNV-R-24-24 features an overall size of 27.5” wide x 306" long x 43" high.
  • Service Range: BEXCNV-S-24-24 features a raised height: 43" with a lowered height: 24".
  • Weight: These units weigh 440 lbs. and 365 lbs.
  • Usage: Expandable precise positioning for large capacity transferring a variety of objects.
  • Operation: These models can be retracted in different shapes to meet the conveyor requirement layout design. Extended handle for simple maneuvering into position.
  • Capacity: Uniform capacity is 200 lb. ft.
  • Standard: Expanding Roller Conveyor is to be expanded to reach greater distances between packaging points.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents



Expanding Roller Conveyor - BEXCNV series
Model No. Description Conveyor Type Overall (W x L x H) Collapsed Dimensions (W x L x H) Raised Leg Height Lowered Leg Height Capacity (lbs.) Price
1) BEXCNV-S-24-24 Straight Skate 25"x308"x43" 27¼"x91"x24" 43" 24" 200 lb./ft. $4,758.36
2) BEXCNV-R-24-24 Rounded Roller 27½"x306"x43" 27½"x131½"x29" 36" 29" 200 lb./ft. $4,796.58
