Machine Skates - Equipment Rollers - BVHMS series

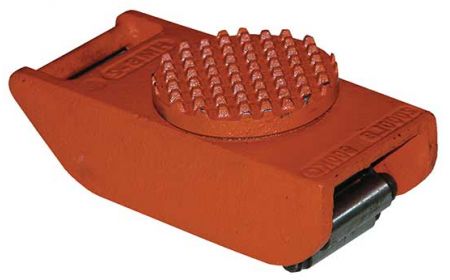

Beacon® BVHMS Series

Machine Skates are designed to roll over cracked and pitted areas, reducing product damage. To enable easier turning, these steel Equipment Rollers feature swivel tops that rotate 360 degrees on chrome steel ball bearings. The load's weight is transferred directly from the load-bearing plate to the rollers, requiring less power to start and move and eliminating axle friction. The swivel tops' spring-loaded locking mechanism (except on the BVHMS-2) can be engaged in detents of 45-degree intervals.
Starting at: $236.44

See chart below and click a model number

Product Details

  • Construction: The units feature steel construction.
  • Size: The series is available in a variety of sizes up to 6-1/2" wide x 12-3/4" long, with an overall height up to 5".
  • Color: Models are Beacon orange. The kit comes in a Beacon blue case for easy storage.
  • Weight: 12 to 112 lbs.
  • Capacity: The unit is available in capacities of 2,000, 8,000, 15,000, and 30,000 lbs.
  • Options: The steering bars can be split in two and connect with sleeve for easy storage of the Machine Skates. Turning bars are also available as an option. A kit is available with four BVHMS-2 and two BVHMH-36-1 units.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents


Options


Machine Skates - BVHMS Series
Model No. Body Size (W x L) Capacity (LBS) Overall Height Type of Top Price
1) BVHMS-2 3.25"x8" 2,000 3½" Swivel $236.44
2) BVHMS-8 5.5"x10" 8,000 5" Swivel $319.21
3) BVHMS-15 5.75"x10.5" 15,000 5" Swivel $348.40
4) BVHMS-30 6.5"x12.75" 30,000 5" Swivel $443.83
OPTION - Machine Skates Handle
Model No. Description Use With Handle Length Price
5) BVHMH-36-1 Steering Bar BVHMS-2 36" $52.02
6) BVHMH-36-2 Steering Bar BVHMS-8/15/30 36" $55.93
7) BVHMH-48-1 Steering Bar BVHMS-2 48" $55.88
8) BVHMH-48-2 Steering Bar BVHMS-8/15/30 48" $58.41

OPTION - Machine Skates Handle (continued)

Model No. Description Use With Handle Length Price
9) BVHMH-TB-2 Turning Bar BVHMS-8/15/30 36" $80.10
OPTION - Machine Skates Kit
Model No. Description Price
10) BVHMS-2-KIT Includes (4) BVHMS-2 Machine Rollers & (2) BVHMH-36-1 Steering Bars $992.05


Complementary Products: For additional equipment designed for rolling very heavy items, please see Beacon Moving Skates.
