Pallet Turntable

Pallet Turntable - Carousel Wrapper - BPOW-CAR series

Beacon® BPOW-CAR-50 Series

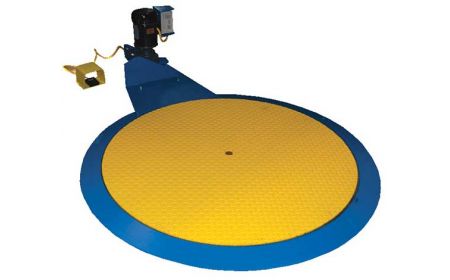

Pallet Turntable measures just 1" in height, making it accessible to pallet trucks. Model BPOW-CAR-LP is a low-profile Carousel Wrapper unit that allows 300 degree pallet truck access and does not require the optional ramp for pallet jack use.
Starting at: $4,492.51

See chart below and click a model number

Product Details

  • Electrical: The series features 115V AC power, single phase, 3/4 HP motor.
  • Color: Models are powder coated Beacon blue and yellow.
  • Weight: 450 lbs.
  • Operation: Variable speed foot control with an 8' power cord is standard. Units feature cushion start and stop.
  • Capacity: The low profile series has a capacity of 4,000 lbs.
  • Options: An optional approach ramp, measuring 48" wide x 36" long or 48" long, is available for the Pallet Turntable. A manual air bearing ramp also is available.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will apply to published pricing.
  • Note: Testing, adjustments, training and scheduled maintenance procedures by others.

Documents


Options


Pallet Turntable - BPOW-CAR-50 Series
Model No. Capacity (LBS) Height R.P.M Voltage Platform Diameter Overall Size Price
1) BPOW-CAR-50 4,000 2-1/16" 3-12 115 Vac 50 " Diameter 85¼" $4,492.51
Pallet Turntable with 360 ramp - BPOW-CAR-AR5
Model No. Capacity (LBS) Height R.P.M Voltage Platform Diameter Overall Size Price
2) BPOW-CAR-AR5 4,000 1" 3-12 115 Vac 50 " Diameter TBD $5,933.78
Pallet Turntable Power Mast - BPOW Series - OPTION
Model No. Description Overall Height (Inches) Wrap Height (inches) Dimensions W x L x H (inches) Power Installation Price
3) BPOW-CAR-PMO Power Mast Option 96⅝ 80-9/16 15.06x19.75x96.62 115 Vac, 1 Ph, 60 Hz Factory Installed $2,936.92
4) BPOW-CAR-PMO-RF Power Mast Option 96⅝ 80-9/16 15.06x19.75x96.62 115 Vac, 1 Ph, 60 Hz Field Installed $3,226.97
Pallet Turntable Manual Mast - BPOW Series - OPTION
Model No. Description Overall Height (Inches) Wrap Height (inches) Dimensions W x L x H (inches) Power Installation Price
5) BPOW-CAR-M-RF Manual Mast Option 92⅜ 84 22.25x18.87x92.37 Manual Field Installed $1,561.83
Pallet Turntable Approach Ramp - BPOW Series - OPTION
Model No. Description Dimensions (Width x Length x Height) Material Capacity (LBS) Usable Width Color Price
6) BPOW-CAR-50-R-4848 Approach Ramp for Pallet Turntable 51.18"x39.93"x1.81" Steel 4,000 48" Blue $738.97




TM
Call Beacon: 800-454-7159314-487-7600
