Mobile Hoppers

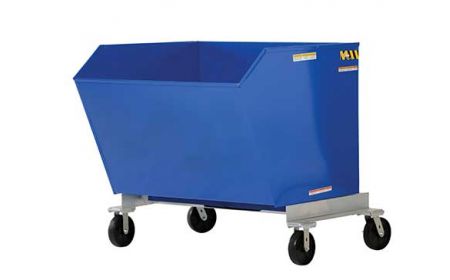

Mobile Hoppers - BP-HOP series

Beacon® BP-HOP Series

Mobile Hoppers are designed for the convenient handling of waste and bulk materials. The Chip Hopper units are ideal for plants, distribution centers, warehouses, and other large, open-air facilities. BP-HOP units must be dumped with a fork truck and tilt with operator assistance.
Starting at: $1,310.11

See chart below and click a model number

Product Details

  • Construction: The models feature 12-gauge welded steel construction.
  • Size: Models range in overall size from 26" to 34-13/16" wide, 52-1/4" to 54" deep, and 37-3/8" to 49-3/8" high.
  • Overall Fork Width: The BP-HOP series features either 7" wide x 2" high or 7-1/2" wide x 2-1/2" high fork pockets and fork centers of 11-5/8", 18", or 21-5/8".
  • Color: The hoppers are powder coated Beacon blue.
  • Weight: Units weigh between 286 and 691 lbs.
  • Operation: This Chip Hopper series features fork entry tubes for convenient operation with a fork truck to move unit over rough terrain.
  • Capacity: 2,000 lbs. uniform capacity
  • Standard: The BP-HOP series comes standard with a foot-operated caster lock and 2 rigid and 2 swivel 8" x 2" glass-filled nylon casters.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: All standard and special hoppers are stitch welded. Special continuous welds for liquid tight available at additional charge.

Documents


Options


Mobile Hoppers - BP-HOP Series
Model No. Volume Cubic Yards Capacity (LBS) Overall Size (W x D x H) Gauge of Steel Fork Pocket (W x H) Fork Center Note Price
1) BP-HOP-0.5 0.5 2,000 34-13/16"x52¼"x37⅝" 12 7"x2" 11⅝" A $1,310.11
2) BP-HOP-1 1 2,000 58-13/16"x52⅞"x37⅜" 12 7"x2" 21⅝" A $1,467.80
3) BP-HOP-1.5 1.5 2,000 58-13/16"x53⅜"x49⅜" 12 7"x2" 21⅝" A $1,639.42
Notes:
A: 8" x 2" glass-filled-nylon casters


Complementary Products: To keep hopper contents out of sight for a neater appearance, please see specialty lids for hoppers.
