Pipe Cart

Pipe Cart - BDCC series

Beacon® BDCC Series

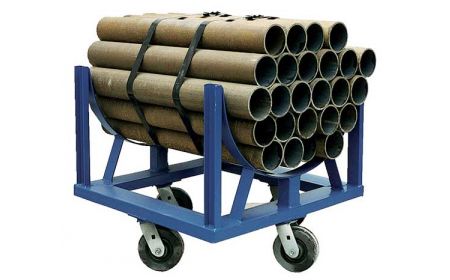

The Pipe Cart enables workers to move and store barrels, pipes, drums, and other cylindrical materials. It features a large, open design for easier loading and unloading via using fork trucks and slings. The wheels are mounted in a diamond configuration, allowing the unit to tilt when rolled over thresholds and when turned about on its center. The lightweight aluminum unit fits small to medium loads and rolls on 4 swivel 3" x 1-1/2" poly casters. BDCC-80 rolls on four swivel 8" x 2" phenolic casters. All other models feature two rigid and two swivel 8" x 2" phenolic casters.
Starting at: $418.34

See chart below and click a model number

Product Details

  • Construction: The BDCC-80 series features all-steel welded construction; the BDCC-17 model features all-aluminum welded construction.
  • Size: Models range in width from 20" to 29", in length from 20" to 120", and in height from 5-1/2" to 29".
  • Color: Steel models are powder coated Beacon blue.
  • Weight: The aluminum series weighs 20 lbs. The steel series weighs between 96 and 570 lbs.
  • Capacity: The aluminum Pipe Cart model has a capacity of 600 lbs. The steel models have capacities of either 4,000 or 10,000 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Pipe Cart - BDCC Series
Model No. Size (W x L x H) Capacity (LBS) Caster Size and Type Construction Price
1) BDCC-80 29"x 29"x24" 4,000 (4) Swivel 8"x2" Phenolic Steel with Blue Powder Coat $576.04
2) BDCC-28120-10 28"x120"x29" 10,000 (2) Rigid (2) Swivel 8"x3" Phenolic Steel with Blue Powder Coat $1,989.37
3) BDCC-2860-10 38"x60"x29" 10,000 (2) Rigid (2) Swivel 8"x2" Phenolic Steel with Blue Powder Coat $1,466.54
4) BDCC-2860-4 28"x60"x29" 4,000 (2) Rigid (2) Swivel 8"x2" Phenolic Steel with Blue Powder Coat $1,105.32
5) BDCC-2896-10 28"x96"x29" 4,000 (2) Rigid (2) Swivel 8"x3" Phenolic Steel with Blue Powder Coat $1,793.39
6) BDCC-2896-4 28"x96"x29" 10,000 (2) Rigid (2) Swivel 8"x2" Phenolic Steel with Blue Powder Coat $1,311.36

7) BDCC-17 20"x20"x5½" 600 (4) Swivel 3"x1½" Poly Aluminum $418.34
