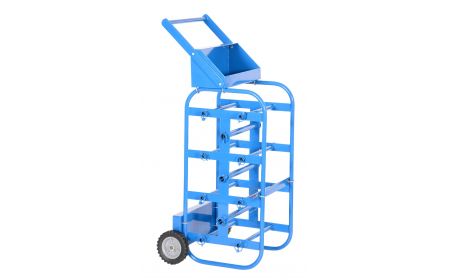

Portable Cable Caddy

Portable Cable Caddy - BWIRE series

Beacon® BWIRE series

The Portable Cable Caddy allows the operator to transfer wire reels and dispense wire vertically or horizontally.
Starting at: $194.43

See chart below and click a model number

Product Details

  • Construction: Portable Cable Caddy features a steel construction with a painted finish made to last.
  • Size: Includes (11) spool bars for various reel sizes, (3) large 1-1/6” diameter axles handle 14” maximum reel diameter, while the (8) smaller ¾” diameter axles handle 7” maximum reel diameter.
  • Installation: Ships knocked down and requires some installation.
  • Weight: This portable units weighs 41 lbs. unloaded making it easy to transport.
  • Scope: Storage tray for holding tools, 6” diameter semi-pneumatic wheels and a 43-1/2” high handle come standard with the Portable Cable Caddy.
  • Usage: Designed to transport wire reels from workstation to workstation and dispense vertically and horizontally.
  • Capacity: Uniform capacity is 150 lbs. Large spindles have a 90 lbs. capacity and the small spindles have a 60 lbs. capacity.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Portable Cable Caddy - BWIRE series
Model No. Overall Size (W x D x H) Capacity (lbs.) Price
1) BWIRE-D-E 17¾"x19½"x43⅛" 150 $194.43
