Portable Steel Work Table

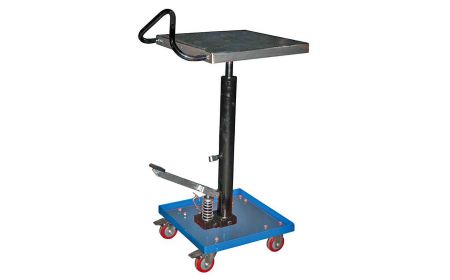

Portable Steel Work Table - BHT series

Beacon® BHT Series

Portable Steel Work Table is designed for heavy-duty shop uses such as moving machine parts, lifting dies and castings, leveling feed material for pump presses, and positioning welders' work. This Steel Table Top is available in both light-duty and heavy-duty models. Each light-duty model features a single-speed foot pump, while each heavy-duty model features a two-speed foot pump for convenience. The posts of the units are telescoping to help stabilize and support loads during operation. The foot pump for each unit includes a down speed control valve for safe platform lowering.
Starting at: $676.64

See chart below and click a model number

Product Details

  • Construction: Models feature heavy duty steel construction. Models ending in suffix -PSS feature partially stainless steel construction in which the platform, hardware, handle, frame, and caster rigs are stainless steel, and zinc-plated posts and pump assembly.
  • Size: This series is available in sizes ranging from 16" wide x 16" long to 32" wide x 48" long.
  • Service Range: Units have a service range from 31" to 54".
  • Power: The DC models BHT-20-2436-DC and BHT-20-3036-DC come standard with DC power.
  • Weight: The units are available in a variety of weights ranging from 126 to 596 lbs.
  • Operation: All models are available with a single or two speed foot pump. DC models include a 12 V DC electric motor, a battery, and on-board charger, and a hand control on an 8' coil cord. Model BHT-02-1616A has a 360-degree swivel turntable platform.
  • Capacity: 200 to 6,000 lbs.
  • Standard: Steel Work Table units include two locking swivel casters with brakes and two rigid casters, available in phenolic, poly-on-poly, and poly-on-steel. Models BHT-02-1616A, BHT-03-1616A and BHT-05-1818A feature a removable rubber platform cover.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Model numbers with suffix -A are shipped knockdown.

Documents
Portable Steel Work Table - BHT Series
Model No. Capacity (LBS) Platform Size (W x L) Service Range Number of Posts Caster Type Operation Note Price
1) BHT-02-1616A 200 16"x16" 49"x31" 1 4"x1¼" Poly-on-Poly 1-Speed Foot Pump A $676.64
2) BHT-05-1818A 500 18"x18" 49"x31" 2 4"x1¼" Poly-on-Poly 1-Speed Foot Pump A $1,002.20
3) BHT-10-2036A 1,000 20"x36" 54" to 36" 2 5"x1½" Poly-on-Steel 1-Speed Foot Pump A $1,280.84

4) BHT-20-2436A 2,000 24"x36" 54" to 36" 4 5"x1½" Poly-on-Steel 1-Speed Foot Pump A $1,734.91
5) BHT-20-3036A 2,000 30"x36" 54" to 36" 4 5"x1½" Poly-on-Steel 1-Speed Foot Pump A $1,871.01
6) BHT-20-3042 2,000 30"x42" 54" to 36" 4 4"x2" Phenolic 2-Speed Foot Pump A $2,245.05
7) BHT-20-3248 2,000 32"x48" 54" to 36" 4 4"x2" Phenolic 2-Speed Foot Pump A $2,367.09

8) BHT-30-2436 3,000 24"x36" 54" to 36" 4 4"x2" Phenolic 2-Speed Foot Pump A $2,096.21
9) BHT-30-3036 3,000 30"x36" 54" to 36" 4 4"x2" Phenolic 2-Speed Foot Pump A $2,200.52
10) BHT-30-3042 3,000 30"x42" 54" to 36" 4 4"x2" Phenolic 2-Speed Foot Pump A $2,233.61

Portable Steel Work Table - BHT Series (continued)
Model No. Capacity (LBS) Platform Size (W x L) Service Range Number of Posts Caster Type Operation Note Price
11) BHT-40-2436 4,000 24"x36" 54" to 36" 4 4"x2" Phenolic 2-Speed Foot Pump A $2,416.67
12) BHT-40-3036 4,000 30"x36" 54" to 36" 4 4"x2" Phenolic 2-Speed Foot Pump A $2,865.79
13) BHT-40-3042 4,000 30"x42" 54" to 36" 4 4"x2" Phenolic 2-Speed Foot Pump A $2,949.68

14) BHT-60-2436 6,000 24"x36" 54" to 36" 4 6"x2½" Phenolic 2-Speed Foot Pump A $2,996.65
15) BHT-60-3248 6,000 32"x48" 54" to 36" 4 6"x2½" Phenolic 2-Speed Foot Pump A $3,168.53
Notes:
A: Low Profile & Short Pump Lift range Available, Consult Beacon for Pricing. AC, DC. Or Air/Oil Available.
Portable Steel Work Table - DC Battery - BHT-DC Series
Model No. Capacity (LBS) Platform Size (W x L) Service Range Number of Posts Caster Type Operation Note Price
16) BHT-20-2436-DC 2,000 24"x36" 54" to 36" 4 4"x2" Phenolic 12V DC Power A $3,981.30
17) BHT-20-3036-DC 2,000 30"x36" 54" to 36" 4 4"x2" Phenolic 12V DC Power A $4,067.83
Notes:
A: Low Profile & Short Pump Lift range Available, Consult Beacon for Pricing. AC, DC. Or Air/Oil Available.
