High Lift Pallet Truck

Name: High Lift Pallet Truck
Brand: Beacon
Price: 18302.25 USD
Availability: InStock

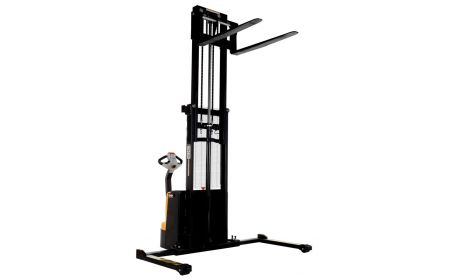

High Lift Pallet Truck - BS-100-AA series

Beacon® BS-101-AA series

The High Lift Pallet Truck has models with a maximum raised fork height of 12.5’ (150”). This heavy duty unit includes a 24 VDC high torque motor for the drive and lift features with models up to 3,000 lb. capacity. This unit is an important piece of equipment in warehouses and distribution centers. The powered electric stackers transports pallets and skids quickly and efficiently.

Starting at: $18,302.25

See chart below and click a model number

Product Details

Models: Units that feature the suffix “DM” and “AA” have adjustable forks and adjustable support legs that work with pallets and skids. Units that feature the suffix “FF-DM” have fixed forks over fixed support legs that work only with skids.
Construction: High Lift Pallet Truck includes power drive, power lift with double mast. Stops with electromagnetic disc brake including an automatic dead-man feature that activates when the worker releases the handle.
Size: Adjustable fork sizes range from 8.3” to 26-3/4” x 42” and fixed fork sizes measure 26-3/4” x 42”.
Service Range: All units have a lowered height of 2-1/8” and have raised heights that vary form 101” to 150”.
Electrical: 3-4 hour operation at full charge and 8 hours when used intermittently.
Powered: High torque 24V DC drive and lift motor with a powered lifter that features (2) 12V batteries, integral battery charger and battery gauge. Features a 1.0 KW drive and 2.0 KW lift motor.
Usage: Easily transport loads quickly and efficiently with this model.
Operation: Easy to use handle features control throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, emergency reverse function, and horn.
Capacity: Units have a uniform capacity of 2,200 lbs. and 3,000 lbs. when raised 0”-62”. When raised above 62” see chart for capacities.
Options: AGM battery upgrade is available with purchase of new unit and a solid platform is available upon request.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Prop. 65 WARNING

High Lift Pallet Truck - BS-101-AA series
Model No.	Fork Size (W x L)	Lowered Height	Raised Height	Forks & Legs	Capacity (lbs.) 0" - 62" Raised Height	Capacity (lbs.) 62" - 118" Raised Height	Capacity (lbs.) 118" - 150" Raised Height	Price
1) BS-101-AA-DM	8.3" to 26-¾"x42"	2⅛"	101"	Adjustable Forks & Legs	2,200	1,500	--	$18,302.25
2) BS-118-AA-DM	8.3" to 26-¾"x42"	2⅛"	118"	Adjustable Forks & Legs	2,200	1,500	--	$18,968.54
3) BS-125-AA-DM	8.3" to 26-¾"x42"	2⅛"	125"	Adjustable Forks & Legs	2,200	1,500	1,500	$19,559.96
4) BS-150-AA-DM	8.3" to 26-¾"x42"	2⅛"	150"	Adjustable Forks & Legs	2,200	1,500	1,000	$21,498.23
5) BS3-118-AA	8.3" to 26-¾"x42"	2⅛"	118"	Adjustable Forks & Legs	3,000	2,500	--	$23,342.68
6) BS3-125-AA	8.3" to 26-¾"x42"	2⅛"	125"	Adjustable Forks & Legs	3,000	2,500	2,000	$23,191.53
High Lift Pallet Truck - BS-101-AA series (continued)
Model No.	Fork Size (W x L)	Lowered Height	Raised Height	Forks & Legs	Capacity (lbs.) 0" - 62" Raised Height	Capacity (lbs.) 62" - 118" Raised Height	Capacity (lbs.) 118" - 150" Raised Height	Price
7) BS-118-FF-DM	26-¾"x42"	2⅛"	118"	Fixed Forks & Legs	2,200	1,500	--	$18,424.71

Model No.	Fork Size (W x L)	Lowered Height	Raised Height	Forks & Legs	Capacity (lbs.) 0" - 62" Raised Height	Capacity (lbs.) 62" - 118" Raised Height	Capacity (lbs.) 118" - 150" Raised Height	Price
8) BS3-62-AA	8.3" to 26-¾"x42"	2⅛"	62"	Adjustable Forks & Legs	3,000	--	--	$15,159.51
Motorized Hand Truck - Option
Model No.	Description							Price
9) BAGM-UPG-2-12V	AGM BATTERY UPGRADE (2x12V) must be purchased with new unit							$1,112.94
