Pallet Stacker

Name: Pallet Stacker
Brand: Beacon
Price: 4024.57 USD
Availability: InStock

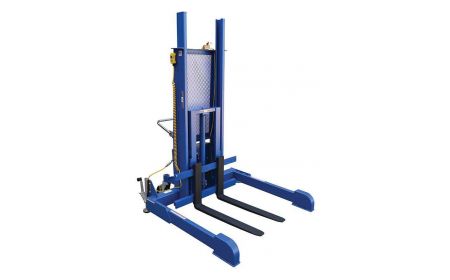

Pallet Stacker - Fork Truck - BPMPS series

Beacon® BLL-PMPS Series

The Pallet Stacker - Pallet Master Fork Truck lift crates, bins, and skids with or without an understructure from floor level to an ergonomic working height. They are ideal for loading and unloading trailers. The straddle design makes it compatible with either skids or pallets. On the BLL-PMPS series Pallet Stacker, outriggers are adjustable from 30" to 50".

Starting at: $4,024.57

See chart below and click a model number

Product Details

Construction: The Pallet Stacker features welded steel construction.
Size: Each fork is 4" wide x 36" long. Longer forks are available.
Lowered Fork Height: The lowered fork height is 3".
Lift Heights: The overall lift height ranges from 50" up to 72".
Powered: Units are powered either by 12V DC battery, 115V AC power, or air/oil power. Contact Beacon for more power options.
Weight: Weight ranges from 860 to 1,105 lbs.
Capacities: The capacity ranges from 1,200 to 4,000 lbs. Regardless of fork length, capacity is rated at 18".
Standard: BPMPS series have 8" x 3" swivel rear casters. BLL-PMPS has 8" x 2" swivel rear casters. Units come standard with push buttons, hand pendant control with 8' coil cord, key operated on/off switch, and floor lock.
Options: Beacon offers a power traction drive option and a hand control on a cord option on the Pallet Stacker. Other options are 48" long forks, a drum carrier, battery charger and battery charger gauge.
Limited Warranty: The Pallet Stacker has a one-year structural and electrical limited warranty.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Pallet Stacker Questions and Answers

Documents

Pallet Stacker - BLL-PMPS Series
Model No.	Operation	Capacity (LBS)	Fork Size (W x L)	Service Range	Casters	Price
1) BPMPS-50-DC	12V DC	4,000	4"x36"	3" to 50"	8"x3" Swivel Phenolic	$7,785.76
2) BPMPS-50-AC	115V AC	4,000	4"x36"	3" to 50"	8"x3" Swivel Phenolic	$7,785.76
3) BPMPS-50-AIR	Air/Oil	4,000	4"x36"	3" to 50"	8"x3" Swivel Phenolic	$7,785.76

4) BPMPS-60-DC	12V DC	4,000	4"x36"	3" to 60"	8"x3" Swivel Phenolic	$7,790.81
5) BPMPS-60-AC	115V AC	4,000	4"x36"	3" to 60"	8"x3" Swivel Phenolic	$7,790.81
6) BPMPS-60-AIR	12V DC	4,000	4"x36"	3" to 60"	8"x3" Swivel Phenolic	$7,790.81
Pallet Stacker with Adjustable Outriggers - BLL-PMPS Series
Model No.	Operation	Capacity (LBS)	Fork Size (W x L)	Service Range	Casters	Price
7) BLL-PMPS-50-DC	12V DC	1,200	4"x36"	3" to 50"	8"x2" Swivel Phenolic	$4,024.57
8) BLL-PMPS-50-AC	115V AC	1,200	4"x36"	3" to 50"	8"x2" Swivel Phenolic	$4,024.57
9) BLL-PMPS-50-AIR	Air/Oil	1,200	4"x36"	3" to 50"	8"x2" Swivel Phenolic	$4,024.57
Pallet Stacker with Adjustable Outriggers - BLL-PMPS Series (continued)
Model No.	Operation	Capacity (LBS)	Fork Size (W x L)	Service Range	Casters	Price
10) BLL-PMPS-60-DC	12V DC	1,200	4"x36"	3" to 60"	8"x2" Swivel Phenolic	$4,516.82
11) BLL-PMPS-60-AC	115V AC	1,200	4"x36"	3" to 60"	8"x2" Swivel Phenolic	$4,516.82
12) BLL-PMPS-60-AIR	Air/Oil	1,200	4"x36"	3" to 60"	8"x2" Swivel Phenolic	$4,516.82

13) BLL-PMPS-72-DC	12V DC	1,200	4"x36"	3" to 72"	8"x2" Swivel Phenolic	$5,279.93
14) BLL-PMPS-72-AC	115V AC	1,200	4"x36"	3" to 72"	8"x2" Swivel Phenolic	$5,279.93
15) BLL-PMPS-72-AIR	Air/Oil	1,200	4"x36"	3" to 72"	8"x2" Swivel Phenolic	$5,279.93
OPTION
Model No.	Description					Price
16) BPTDS	Powered Traction Drive System					$7,302.65
17) BPMPS-DCR	Retrofit Drum Carrier Rotator (800 lb capacity)					$1,191.84
Model No.	Description					Price
18) BBC	Bench-top Style Battery Charger					$197.80

19) BPMPS-48FORK	48" Long Forks (in place of 36" long forks)					$518.82
