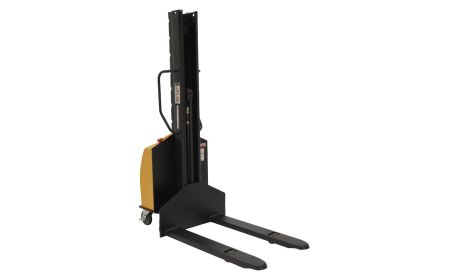

Skid Product Stacker

Beacon® BSLNM Fork Over Series

Product Details

• Construction: The Skid Product Stacker is manufactured using high quality material and parts.
• Service Range: Raised Time Loaded: 5.9" per second, Raised Time Unloaded: 2.95" per second, Downtime Loaded 4" per second, Downtime Unloaded: 3.15" per second.
• Operating Range: BSLNM-63-FF & BSLNM15-63-FF has a 19-11/16" Load Center and the BSLNM-118-FF has a 19-3/4" Load Center.
• Lowered Fork Height: This Skid Product Stacker BSLNM-63-FF & BSLNM-118-FF has a lowered height of 3-1/4 and the BSLNM15-63-FF has a lowered height of 3-3/8".
• Raised Fork Height: This BSLNM-63-FF & BSLNM15-63-FF has a lift height of 63" and the BSLNM-118-FF has a lift height of height of 118".
• Overall Fork Width: The Skid Product Stackers have a fork width of 5.9" each.
• Electrical: Battery: 12V /140 Ah. (Battery charger 12 V / 6 amp)
• Powered: Lift Motor: DC 12 V / 1.3 KW.
• Power: All Pallet Movers have integral battery charger and battery level gauge.
• Color: Yellow and Black.
• Usage: Narrow mast Pallet Mover is ideal for shipping, packaging and manufacturing facilities.
• Operation: Manual Push with DC power lift.
• Capacity: 1,000 or1,500 lbs.
• Standard: Lift and lower controls are in body housing next to the operator. Steer wheels are larger for greater maneuverability.
• Limited Warranty: One year structural and electrical.
