Aluminum Winch Lift - Aluminum Lite Load Lifts - BALLW series

Beacon® BALLW Series

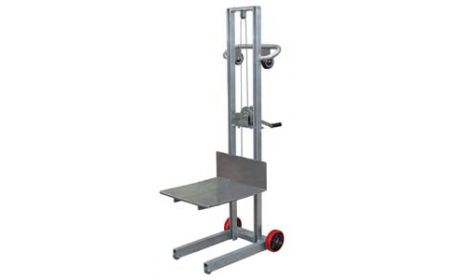

Aluminum Winch Lift is designed to lift and move loads from the truck to the dock or to assist in inventorying storage system items. These Aluminum Lite Load Lifts lift about 1" per winch turn or foot pump press. Models ending in -FW have 6" x 2" poly-on-poly back wheels and 2" semi-steel front wheels. Models with suffix -4SFL feature 8" x 2" poly-on-poly rear wheels, 4 swivel casters, and a hand-operated floor lock. The handle has 2 rollers to ease loading onto trucks.
Starting at: $994.55

See chart below and click a model number

Product Details

  • Construction: Units feature aluminum construction.
  • Size: The units are available in platform sizes of either 20" wide x 20" long or 24" wide x 20" long.
  • Service Range: The winch operated lifts have service ranges of 3-1/4" to 58", 3-1/4" to 53", 6-1/4" to 57", or 6-1/4" to 59".
  • Weight: Units are available in weights of 130 or 145 lbs.
  • Operation: The BALLW models are winch operated. The BALLH models are foot-pump operated.
  • Capacity: Models have a capacity of 400 lbs.
  • Options: An optional factory-installed wheel lock is available for Aluminum Winch Lift -FW models only.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents


Options


Aluminum Winch Lift - BALLW Series
Model No. Platform Size (W x L) Lowered Height Raised Height Capacity (LBS) Operation Price
1) BALLW-2020-FW 20"x20" 3⅛" 58" 400 Winch $994.55
2) BALLW-2420-4SFL 24"x20" 6⅛" 60" 400 Winch $1,471.51

3) BALLH-2020-FW 20"x20" 3¼" 53" 400 Foot Pump $1,672.62
4) BALLH-2420-4SFL 24"x20" 6⅛" 54⅛" 400 Foot Pump $2,130.41
