Dolly with Lift

Name: Dolly with Lift
Brand: Beacon
Price: 1017.51 USD
Availability: InStock

Beacon® BLLPW Series

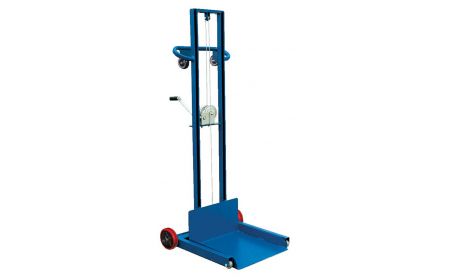

The Dolly with Lift is designed to lift and move loads from trucks to docks. These Low Profile Lite Loads Lifts can also be used to inventory items on storage systems. Two rollers are featured on the handle to making loading into trucks quick and easy. The -FW units move on 6" x 2" poly-on-poly rear wheels and 2" front wheels made of semi-steel. They feature a 10" horizontal load center. Four swivel casters, 8" x 2" poly-on-poly rear wheels, and floor lock come standard on the -4SFL models. All models have a 1/4" deck height with 2"-high side lips.

Starting at: $1,017.51

See chart below and click a model number

Product Details

Construction: Models are available in either steel or aluminum construction.
Size: The units are available with platform sizes of 20" wide x 20" long.
Service Range: Models are available with a variety of service ranges from 1/4" to 58".
Weight: This series is available in a variety of weights ranging from 103 to 249 lbs.
Operation: The BLLPW and BALLPW models feature winch operation. The BLLPH and BALLPH models are foot pump operated. The platform of the unit lifts approximately 1" per winch rotation or one foot pump stroke.
Capacity: The models come with capacities of 400 or 500 lbs.
Options: The Dolly with Lift has optional hand-operated floor locks (factory installed) and a 2-speed foot pump available.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Options

Dolly with Lift - Steel Construction - BLLPW Series
Model No.	Platform Size (W x L)	Lowered Height	Raised Height	Capacity (LBS)	Operation	Price
1) BLLPW-500-FW	20"x20"	¼"	55"	500	Winch	$1,017.51
2) BLLPW-500-4SFL	24"x20"	¼"	58"	500	Winch	$1,434.65
Dolly with Lift - Steel Construction - BLLPH Series
Model No.	Platform Size (W x L)	Lowered Height	Raised Height	Capacity (LBS)	Operation	Price
3) BLLPH-500-FW	20"x20"	¼"	50"	500	Foot Pump	$1,360.93
4) BLLPH-500-4SFL	24"x20"	¼"	48¼"	500	Foot Pump	$1,840.46
Dolly with Lift - Aluminum Construction - BALLPW Series
Model No.	Platform Size (W x L)	Lowered Height	Raised Height	Capacity (LBS)	Operation	Price
5) BALLPW-500-FW	20"x20"	¼"	55"	400	Winch	$1,181.66
6) BALLPW-500-4SFL	20"x20"	¼"	58"	400	Winch	$1,663.66
Dolly with Lift - Aluminum Construction - BALLPH Series
Model No.	Platform Size (W x L)	Lowered Height	Raised Height	Capacity (LBS)	Operation	Price
7) BALLPH-500-FW	20"x20"	¼"	50"	400	Foot Pump	$1,759.15
8) BALLPH-500-4SFL	20"x20"	¼"	50"	400	Foot Pump	$2,192.85
