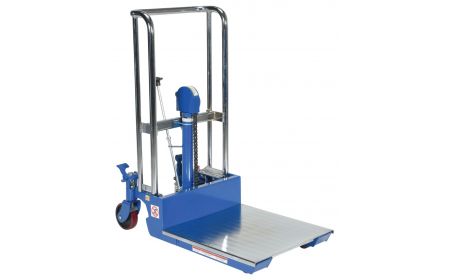

Hand Lift Truck

Hand Lift Truck - Mobile Product Lift Platform - BHYD series

Beacon® BHYD Series

The Hand Lift Truck provides reliable lifting and transporting of loads. This unit is available in a hydraulic manual foot pump or air powered. Featuring forks with a removable platform. The foot pump yields a 3/4" platform movement travel per foot stroke. This series rolls on 2 swivel and 2 rigid polyurethane casters supplied with a foot-operated brake.
Starting at: $1,215.90

See chart below and click a model number

Product Details

  • Construction: This Hand Lift Truck series features welded steel construction with chrome platform and uprights.
  • Service Range: These models feature a lowered height of 3-1/2" and raised heights from 35, 44", 59" to 63" depending on the model.
  • Overall Fork Width: This unit has an overall fork width of 22"
  • Overall Fork Length: Forks are 4-1/2" wide x 2-1/2" high. Fork lengths are the same length of the platform ranging from 24" to 40", depending on the model.
  • Power: Air powered utilizing reciprocating air /oil power, requiring a minimum hose diameter of 1/4". Air pressure required is 72 to 100 psi. Units are push button control to raise and lower the forks or platform.
  • Weight: This product comes in a variety of weights ranging from 190 to 479 lbs.
  • Scope: Steel construction with foot pump or Air operated.
  • Usage: Designed for skids. Not for use of pallets.
  • Capacity: Models are available with capacities of 300, 400, 880, or 1,500 lbs.
  • Standard: All models feature two swivel rear and two rigid front poly-on-steel casters.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Hand Lift Truck with Platform - Foot Pump - BHYD Series
Model No. Platform Size (W x L) Fork Size (W x L x H) Service Range Capacity (lbs.) Operation Price
1) BHYD-3 23"x24" 4½" Widex2½" High 3½" to 35" 880 Foot Pump $1,215.90
2) BHYD-5 23"x24" 4½" Widex2½" High 3½" to 44" 880 Foot Pump $1,257.83
3) BHYD-10 23"x24" 4½" Widex2½" High 3½" to 59" 880 Foot Pump $1,446.24
4) BHYD-15 23"x31½" 4½" Widex2½" High 4" to 63" 1,500 Foot Pump $1,727.31
Hand Lift Truck with Platform - Foot Pump - Extended Length- BHYD Series
Model No. Platform Size (W x L) Fork Size (W x L x H) Service Range Capacity (lbs.) Operation Price
5) BHYD-5-EP 23"x40" 4½" Widex2½" High 3½" to 44" 400 Foot Pump $1,528.78
6) BHYD-10-EP 23"x40" 4½" Widex2½" High 3½" to 59" 300 Foot Pump $1,611.47
Hand Lift Truck with Platform - 2 Speed Auto Shift Foot Pump - BHYD Series
Model No. Platform Size (W x L) Fork Size (W x L x H) Service Range Capacity (lbs.) Operation Price
7) BHYD-5-AS 23"x24" 4½" Widex2½" High 3½" to 44" 880 Two Speed Foot Pump $Call
8) BHYD-10-AS 23"x24" 4½" Widex2½" High 4" to 59" 880 Two Speed Foot Pump $Call
Hand Lift Truck with Platform - Air Powered- BHYD Series
Model No. Platform Size (W x L) Fork Size (W x L x H) Service Range Capacity (lbs.) Operation Price
9) BHYD-5-AIR 23"x24" 4½" Widex2½" High 3½" to 44" 800 Air $1,878.63
10) BHYD-10-AIR 23"x24" 4½" Widex2½" High 3½" to 59" 880 Air $2,028.79
