Hand Winch Lifter

Hand Winch Lifter - Portable Platform Lift - BHWL series

Beacon® BHWL Series

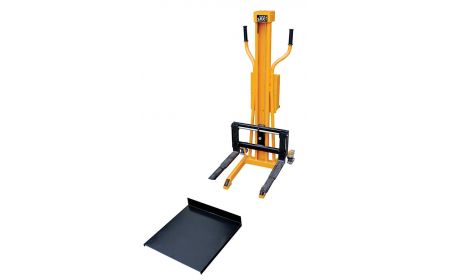

The Hand Winch Lifter has a conveniently removable platform. This Portable Platform Lift unit is two lifting trucks in one with its ability to pick up products with or without built-in fork pockets. The forks are adjustable when the platform is removed. To increase or decrease lifting and lowering speeds, simply adjust the handle length. Each winch rotation lifts the platform or forks 2-1/2".
Starting at: $1,138.34

See chart below and click a model number

Product Details

  • Construction: This unit features a steel frame.
  • Size: This unit features an overall size of 22-1/4" wide x 31-1/2" long x 58-1/2" high. The platform is 21" wide x 19-1/2" long. Forks measure 2" wide x 19-1/2" long. Straddle clearance is 11-3/8".
  • Service Range: Forks lower to 3" and raise to 43-1/2".
  • Color: Models are Beacon yellow.
  • Weight: 213 lbs.
  • Operation: Hand winch.
  • Capacity: 330 lbs.
  • Standard: Hand Winch Lifter units feature 4" x 1" rear phenolic swivel locking wheels and 4" x 1" front phenolic rigid wheels.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Hand Winch Lifter - BHWL Series
Model No. Capacity (LBS) Overall Size (W x L x H) Platform (W x L) Forks (W x L) Service Range Straddle Clearance Operation Lift Per Rotation Price
1) BHWL-330 330 22¼"x31½"x58½" 21"x19½" 2"x19½" 3" to 43½" 11⅜" Hand Winch 2½" $1,138.34
