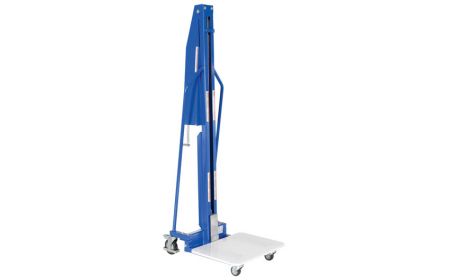

Platform Hand Truck

Platform Hand Truck - Manual Platform Lifter - BMWP series

Beacon® BMWP series

The Platform Hand Truck is a lightweight unit. This Manual Platform Lifter series is ready for lifting jobs and is designed to fit into hard to reach aisles or various constricted facility areas. Auto-brake system allows user to lower loads in a controlled manner. Unit comes standard with front swivel wheels and back swivel wheels with brakes.
Starting at: $1,209.63

See chart below and click a model number

Product Details

  • Size: The platform measures 18-1/2 inches wide by 23-1/2 inches long.
  • Service Range: The service range is 5-1/4" lowered to 59" raised.
  • Color: Models feature a white platform and a Beacon blue frame.
  • Weight: 105 or 155 lbs. depending on the model you choose.
  • Operation: Manual push with manual hand winch.
  • Capacity: Models can lift either 220 or 440 lbs.
  • Options: Quick change adjustments are available for the Platform Hand Truck: V block, reel rotator, double spindle, and single spindle.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Platform Hand Truck - BMWP series
Model No. Capacity (lbs.) Platform (W x L) Overall (W x L x H) Service Range Operation Construction Price
1) BMWP-220-M 220 23¾"x18½" 23¾"x33"x72" 5¼" to 59" Manual Hand Crank Mostly Steel $1,209.63
2) BMWP-440-M 440 23¾"x18½" 23¾"x32"x75¼" 5¼" to 59" Manual Hand Crank Mostly Steel $1,270.66

3) BMWP-330-DC 330 23⅝"x18-½" 23⅝"x34-¼"x70-½" 5-¼" to 59" DC Powered Mostly Steel $2,611.39
4) BMWP-550-DC 550 23⅝"x18-½" 23⅝"x35-½"x79-½" 5-¼" to 71" DC Powered Mostly Steel $3,158.26
Platform Hand Truck - BMWP series - OPTION
Model No. Description Price
5) BMWP-DSPIN OPTION-Double Spindle, 2"Dx17½"L (5½" between spindles) $129.68

Platform Hand Truck - BMWP series - OPTION (continued)

Model No. Description Price
6) BMWP-VBLK OPTION-V-Block, 16"Wx16"Dx3¼"H $184.40
7) BMWP-RR OPTION-Reel Rotator $386.56
8) BMWP-SPIN OPTION-Single Spindle, 1¾"Dx23"L $92.83
