Roll Positioner Lift Hand Truck

Roll Positioner Lift Hand Truck - BHYD-ROLL series

Beacon® BHYD-ROLL series

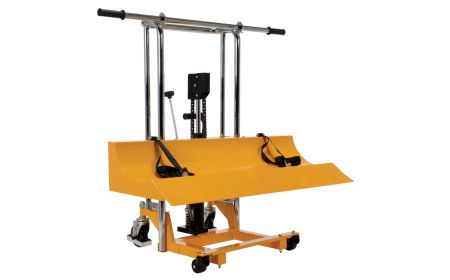

This Roll Positioner Lift Hand Truck helps increase production by allowing the user to lift and transport heavy rolls. This unit is engineered with a concave platform to stabilize rolls when transporting.
Starting at: $2,019.81

See chart below and click a model number

Product Details

  • Construction: Roll Positioner Lift Hand Truck features a concave design to stabilize when lifting and transporting rolls.
  • Size: Roll Positioner Lift Hand Truck features a maximum roll width that ranges from 98”to 197” for rolls both large and small.
  • Service Range: Features two different service ranges for the different models 4” to 33-1/2” and 3-1/8” to 33-1/2”.
  • Usage: Lift and maneuver heavy duty rolls of 98” to 197” maximum diameter depending on the model.
  • Operation: Units are designed with a foot pump which allows for smooth and effortless lifting.
  • Capacity: The uniform capacity for these units is 880 lbs.
  • Standard: Extended nylon strap is provided to leverage and help guide the roll to ensure materials are secured while in transit.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Roll Positioner Lift Hand Truck - BHYD-ROLL series
Model No. Max Roll Width Tray Width Service Range Capacity (lbs.) Price
1) BHYD-ROLL-16 98" 31-½" 4" to 33-½" 880 $2,389.99
2) BHYD-ROLL-47 197" 47¼" 4" to 33-½" 880 $2,327.71
3) BHYD-ROLL-47-LP 197" 47¼" 3⅛" to 33-½" 880 $2,019.81
