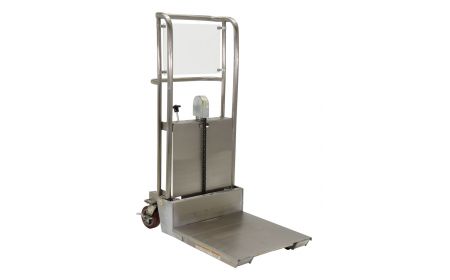

Stainless Steel Hydraulic Stacker

Stainless Steel Hydraulic Stacker - BHYD series

Beacon® BHYD Series

Stainless Steel Hydraulic Stacker designed for clean room including pharmaceutical, chemical and food word environments. Supplied and easily moves on (2) rigid and (2) two locking swivel casters. Manual or powered operation.
Starting at: $3,871.78

See chart below and click a model number

Product Details

  • Construction: This Stainless Steel Hydraulic Stacker is semi electric, designed as manual push with electric lift. The frame and hydraulic cylinders are manufactured from 304 stainless steel for a strong and reliable finish.
  • Service Range: The BHYD-5-PSS & BHYD-5-PS has a service range of 6-1/4" lowered to 45-5/8" raised height. The BHYD-10-DA-SS has a service range of 3-1/8" lowered height to 59" raised height. BHYD-10-DC-SS is 3-1/2" lowered to 59" raised.
  • Electrical: The DC powered unit runs on one 12 Vac battery. Includes battery charger, battery charge indicator to see level of charge with emergency on and off switch.
  • Powered: The BHYD-5-SS Stainless Steel unit is supplied with a hydraulic foot pump and the BHD-10-DA-SS is supplied with a hydraulic dual acting hand pump.
  • Power: The standard manual power lift is operated by foot pump that lifts 3/4" per foot pump stroke. The auto shift models BHYD-5-AS and BHYD-10-AS are available that features a 2 speed foot pump.
  • Standard: Includes hydraulic automatic load check valve.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Stainless Steel Hydraulic Stacker - BHYD Series
Model No. Platform Size (W x L) Fork Size (W x L x H) Service Range Capacity (lbs.) Operation Construction Price
1) BHYD-5-PSS 21"x24" 4½" Widex2½" High 6¼' to 45⅝" 450 Foot Pump Partially Stainless Steel $3,871.78

2) BHYD-5-SS 23⅞"x21¼" 4½" Widex2½" High 6¼" to 45⅝" 450 Foot Pump 304 Stainless Steel $15,728.15
