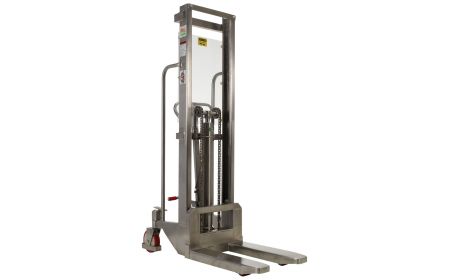

Stainless Steel Stacker

Stainless Steel Stacker - BHYD-10-DA & BHYD-10-DC-SS series

Beacon® BHYD-DA-SS Series

This Stainless Steel Stacker is a utilized in sanitary settings to transport and lift materials. This unit is a user friendly hydraulic lift.
Starting at: $11,179.42

See chart below and click a model number

Product Details

  • Construction: Features a stainless steel construction for selective environments.
  • Projection: Fork Length: 25-1/2" with an overall fork width of 22". Individual fork: 4-1/2" width x 2-1/2" high.
  • Size: Unit Dimensions are 23-1/2" Wide x 48" Long x 74" High.
  • Service Range: This model has a service range of 3-1/8” to 59” for easy lifting.
  • Powered: BHYD-10-DC-SS is powered by 1 contained wet filled acid battery.
  • Usage: Designed to be used for skids not pallets. Engineered for accurate positioning.
  • Operation: The BHYD-10-DA-SS has a dual acting hand pump operation with 3/4" per stroke. The BHYD-10-DC-SS is battery operated making this unit easy to raise and lower materials to an ergonomic position.
  • Capacity: BYD-10-DA-SS Models have a 800 lbs. and the BYD-10-DC-SS has a 880 lbs. uniform capacity.
  • Standard: Poly on Steel, Back swivel casters (2) 7" diameter x 1-3/4" wide. Front Caster Type: Rigid. Foot operated brake included.
  • Limited Warranty: 90 Day Limited Warranty.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: All lead times are approximate and are only estimates.

Documents



Stainless Steel Stacker - BHYD-DA-SS Series
Model No. Platform Size (W x L) Fork Size (W x L x H) Service Range Capacity (lbs.) Operation Construction Price
1) BHYD-10-DA-SS   4½" Wide x 2- ½" High 3⅛"-59" 800 Hand Pump Stainless Steel $19,619.16
Stainless Steel Stacker - BHYD-DC-SS Series
Model No. Platform Size (W x L) Fork Size (W x L x H) Service Range Capacity (lbs.) Operation Construction Price
2) BHYD-10-DC-SS 22"x25- ¾" 4½" Wide x 2½" High 3½" to 59" 880 12 Vac Stainless Steel $11,179.42
