Winch Lift - Steel Lite Load Lifts - BLLW series

Beacon® BLLW Series

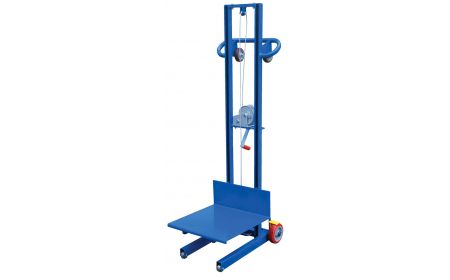

Winch Lift features platform lifts with 1" per winch rotation or foot pump. These portable Steel Lite Load Lifts have a 10" horizontal load center.
Starting at: $1,098.86

See chart below and click a model number

Product Details

  • Construction: This series features steel construction.
  • Service Range: Units have a service range of 3-1/4" lowered up to 59" raised.
  • Color: Models are powder coated Beacon blue.
  • Weight: Models weigh between 167 and 228 lbs.
  • Scope: This series can be used as a computer lift or box lift to lift small payloads in tight areas.
  • Operation: These models are operated by winch or foot pump.
  • Capacities: Models feature capacities of 500 lbs.
  • Standard: Models with suffix -4SFL have 8" x 2" poly-on-poly back wheels, 4 swivel casters, and a hand-operated floor lock. Modes ending in -FW have 6" x 2" poly-on-poly rear wheels and 2" semi-steel front wheels.
  • Options: The Winch Lift has an optional wheel lock (factory installed) available. Another option is the 2-speed foot pump, complete with pressure relief and flow control.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • BLLW-202058-FW360° View

Documents



Winch Lift - BLLW Series
Model No. Platform Size (W x L) Service Range Capacity (LBS) Operation Wheel Size & Type Price
1) BLLW-202058-FW 20"x20" 3⅛" to 58" 500 Winch 6"x2" poly-on-poly rear, 2" semi-steel front $1,098.86
2) BLLW-242060-4SFL 24"x20" 6⅛" to 60" 500 Winch 8"x2" poly-on-poly rear, 4 swivel casters $1,377.39

3) BLLH-202053-FW 20"x20" 3⅛" to 51⅛" 500 Foot Pump 6"x2" poly-on-poly rear, 2" semi-steel front $1,331.69
4) BLLH-242056-4SFL 24"x20" 6⅛" to 54⅛" 500 Foot Pump 8"x2" poly-on-poly rear, 4 swivel casters $1,603.85
