All Terrain Pallet Jack - Off Road Forklift - BALL series

Beacon® BALL-T-GPT Series

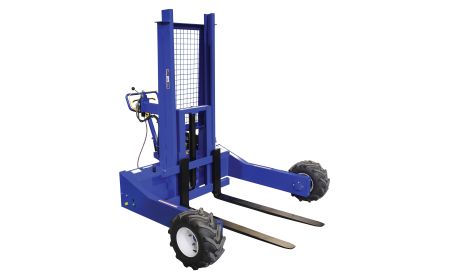

The All Terrain Pallet Jack - Off Road Forklift efficiently transports fully loaded pallets over rough terrains. These units are powered by a 6-HP Briggs & Stratton engine and feature 13" diameter x 4" wide pneumatic steer wheels and 18" diameter x 8-1/2" wide foam-filled pneumatic wheels complete with sealed bearings and a 150 degree steering arc. The handle features speed control for forward and reverse as well as a dead-man safety switch.
Starting at: $12,488.37

See chart below and click a model number

Product Details

  • Construction: All models feature steel construction.
  • Size: Models are 79" wide x 78" long or 79" wide x 90" long.
  • Service Range: The service range is 3" to 12".
  • Overall Fork Width: Forks are adjustable from 8" minimum to 36" maximum on the All Terrain Pallet Jack.
  • Overall Fork Length: Forks are 4" wide x either 36" or 48" long. Power tilt adds 6" of length.
  • Weight: Models weigh from 1,316 lbs. to 1,418 lbs.
  • Capacity: BALL-T-2-GPT has a capacity of 2,000 lbs. at 18" load center. BALL-T-2-GPT-L has a capacity of 2,000 lbs. at 24". BALL-T-4-GPT has a 4,000-lb. capacity at 18". BALL-T-4-GPT-L has a 4,000-lb. capacity at 24".
  • Options: Power Tilt option is available for gas units. This allows an 8 degree tilt in either direction for ergonomic lifting and transporting.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents


Options


All Terrain Pallet Jack - BALL-T-GPT Series
Model No. Capacity (LBS) Adjustable Fork Width Fork (W x L) Service Range Overall Size (W x L) Powder Coat Finish Price
1) BALL-T-2-GPT 2,000 8" to 36" 4"x36" 3" to 12" 79"x78" Blue $12,488.37
2) BALL-T-2-GPT-L 2,000 8" to 36" 4"x48" 3" to 12" 79"x90" Blue $13,478.09
3) BALL-T-4-GPT 4,000 8" to 36" 4"x36" 3" to 12" 79"x78" Blue $13,624.25
4) BALL-T-4-GPT-L 4,000 8" to 36" 4"x48" 3" to 12" 79"x90" Blue $14,633.06
OPTION
Model No. Description Price
5) BALL-GPT-PT Power tilt for gas models - 8 degree tilt in either direction and adds 6" to overall length $1,520.04
