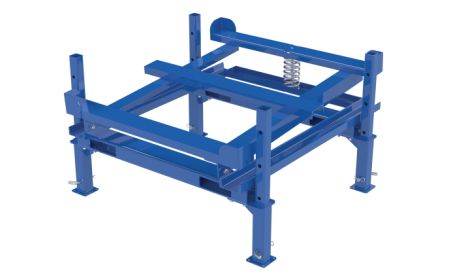

Liquid Storage Container Tilter

Name: Liquid Storage Container Tilter
Brand: Beacon
Price: 1321.43 USD
Availability: InStock

Beacon® BIBC-TLT-FPL Series

Liquid Storage Container Tilter features a self rising design as contents dispense. Allows for easy access to valve connections. Tilts IBC towards the valve for efficient dispensing when contents are getting low.

Starting at: $1,321.43

See chart below and click a model number

Product Details

Construction: Steel construction for industrial use. Adjustable height stand allows for valve access and connections.
Overall Fork Width: Fork Pockets are 7" Wide x 2" High on 27" centers.
Installation: The legs are supplied with pre-drilled mounting holes for anchoring to the concrete surface floor. Fork lift pockets are supplied for movement into position.
Scope: Self Raising Steel Intermediate Bulk Container Tilt Stand for draining fluids.
Usage: Designed specifically for Tilting toward the valve of the INC for dispensing fluid when low.
Operation: The rear of the platform rises in the drain process as the weight diminishes. When draining, the angle increases allowing the fluid to flow out of the container.
Capacity: Liquid Storage Container Tilter uniform capacity is 4,400 lbs.

Liquid Storage Container Tilter - BIBC-TLT-FPL Series
Model No.	Overall Size (W x L x H)	Fork Pocket W x H / Center	Uniform Capacity	Price
1) BIBC-TLT-FPL	47"x49¼"x49¼"	7"x2" / 27"	4400 lbs	$1,321.43
