Pallet Tilter - Straddle Pallet Tilting - BTMS series

Beacon® BTMS Series

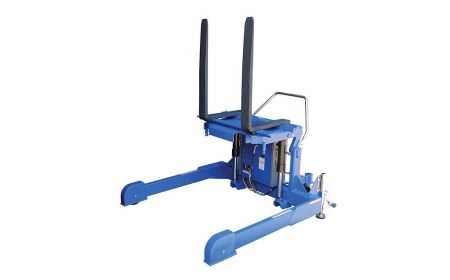

The Pallet Tilter - Straddle Pallet Tilting lifts, positions open or closed bottom pallets and skids easily. This series negates the need of a fork truck or a lift table and accepts most types of containers. It features a folding, ergonomically designed handle that has dual steering grips for quick maneuvering. It also features a thin profile, allowing the user to get as close to the load as possible. Units tilt up to 90 degrees for optimum positioning. This unit rolls on 8" x 3" phenolic steering wheels.
Starting at: $7,017.52

See chart below and click a model number

Product Details

  • Construction: Units feature steel construction.
  • Size: Overall size is 57-1/4" wide x 65-11/16" long x 29-3/16" high. Forks are adjustable from 1/2" to 29-1/2" (ID). Individual forks are 4" wide x 35-7/8" long.
  • Electrical: Units feature a 12V DC battery with an on-board charger. For more electrical options, contact Beacon.
  • Powered: AC or AIR with Oil Reciprocating option available.
  • Color: Units feature a Beacon blue liquid coat finish.
  • Weight: Units weigh from 886 to 989 lbs.
  • Usage: This item is made to order, as a result delivery times are not guaranteed and fluctuate due to supply chain dynamics or unforeseen circumstances. Fulfillment times may vary, lead times are quoted as approximate only. Lead time starts after signed approval drawing. Freight, site prep, install & training not included. Customer responsible for correctness of fit.
  • Capacities: Available with service capacities of 2,000, 4,000, or 6,000 lbs.
  • Standard: A push-button hand control on an 8' coil cord is standard on the Pallet Tilter.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Pallet Tilter - BTMS Series
Model No. Description Capacity (LBS) Fork Adjustment Operator Reach Fork Size (W x L) Skids / Pallets Rotated Height Lowered Height Overall Size (W x L x H) Price
1) BTMS-20-DC DC Motor and On-board Charger 2,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $7,017.52

2) BTMS-40-DC DC Motor and On-board Charger 4,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $7,486.83

3) BTMS-60-DC DC Motor and On-board Charger 6,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $8,114.05
4) BTMS-20-AC AC Motor and On-board Charger 2,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $7,017.52
5) BTMS-40-AC AC Motor and On-board Charger 4,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $7,489.41
6) BTMS-60-AC AC Motor and On-board Charger 6,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $8,114.05
7) BTMS-20-AIR Air Pneumatic Motor 2,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $7,017.52
8) BTMS-40-AIR Air Pneumatic Motor 4,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $7,489.41
9) BTMS-60-AIR Air Pneumatic Motor 6,000 ½" to 29½" 13½" 4"x35⅞" Both 37" 3" 57¼"x65-11/16"x29-3/16" $8,114.05
Pallet Tilter with Traction Drive- BTMS Series
Model No. Description Capacity (LBS) Fork Adjustment Operator Reach Fork Size (W x L) Skids / Pallets Rotated Height Lowered Height Overall Size (W x L x H) Price
10) BTMS-20-DC-PTDS DC Motor and On-board Charger with Power Traction Drive 4000 2,000 ½" to 28½" 14½" 4"x35" Both 37" 3" 57¼"x67⅛"x54" $14,318.81
11) BTMS-40-DC-PTDS DC Motor and On-board Charger with Power Traction Drive 4000 4,000 ½" to 28½" 14½" 4"x36" Both 37" 3" 57¼"x72⅞"x54" $14,761.46
OPTION
Model No. Description Price
12) BTM-CHUTE Chute, Retrofit $368.80
13) BTMF-BATT DC Battery. Deep Cycle Marine Battery $223.87
