Machine Guards

Machine Guards - Safety Bollards - BHPRO series

Beacon® BHPRO Series

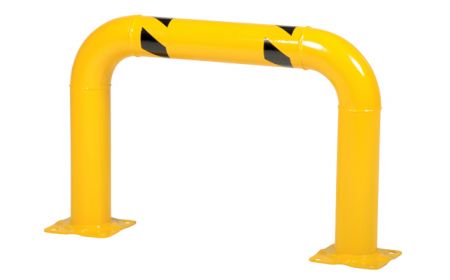

These hand-railing Machine Guards are designed to help enable fork truck and mobile equipment safety. These Safety Bollards are ideal for protecting building walls, racks, and many different types of expensive equipment. Units feature 2 base plates, each of which has 4 pre-drilled mounting holes.
Starting at: $119.54

See chart below and click a model number

Product Details

  • Construction: Machine Guards are constructed of heavy-duty welded steel. Models with -SS feature a 304 stainless steel construction.
  • Size: Models have heights from 24" to 42" and lengths from 36" to 72". The units have outside diameters of 1-5/8" or 4-1/2".
  • Color: Steel units have a powder coat Beacon safety yellow finish. Stainless steel models feature a 304 stainless steel finish.
  • Weight: Models have weights ranging from 30 to 102 lbs.
  • Standard: The 42" high units come with a 21" mid-rail to comply with OSHA requirements. A mid-rail can be added to the 24" & 36" shorter units as an option with additional charge.
  • Options: Concrete Machine Guards installation hardware is available in 2 sizes and is sold separately.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Options

Machine Guards - BHPRO Series
Model No. Description Length Height Outside Diameter Midrail Price
1) BHPRO-36-24-4 Yellow Powder Coat 36" 24" 4½" None $203.37
2) BHPRO-36-36-4 Yellow Powder Coat 36" 36" 4½" None $247.95
3) BHPRO-36-42-4 Yellow Powder Coat 36" 42" 4½" 21" Midrail $255.48
4) BHPRO-48-24-4 Yellow Powder Coat 48" 24" 4½" None $228.81
5) BHPRO-48-36-4 Yellow Powder Coat 48" 36" 4½" None $264.40
6) BHPRO-48-42-4 Yellow Powder Coat 48" 42" 4½" 21" Midrail $281.01
7) BHPRO-60-42-4 Yellow Powder Coat 60" 42" 4½" 21" Midrail $333.16
8) BHPRO-72-42-4 Yellow Powder Coat 72" 42" 4½" 21" Midrail $372.67

9) BHPRO-36-24-2 Yellow Powder Coat 36" 24" 1⅝" None $119.54
10) BHPRO-36-36-2 Yellow Powder Coat 36" 36" 1⅝" None $137.19
11) BHPRO-36-42-2 Yellow Powder Coat 36" 42" 1⅝" 21" Midrail $153.89
12) BHPRO-48-24-2 Yellow Powder Coat 48" 24" 1⅝" None $137.34
13) BHPRO-48-36-2 Yellow Powder Coat 48" 36" 1⅝" None $153.87
14) BHPRO-48-42-2 Yellow Powder Coat 48" 42" 1⅝" 21" Midrail $167.71

15) BHPRO-SS-36-36-4 Stainless Steel 36" 36" 4½" None $953.94
16) BHPRO-SS-36-42-4 Stainless Steel 36" 42" 4½" 21" Midrail $Call
17) BHPRO-SS-48-36-4 Stainless Steel 48" 36" 4½" None $1,208.35
18) BHPRO-SS-48-42-4 Stainless Steel 48" 42" 4½" 21" Midrail $1,474.06
OPTION - Mid Rail
Model No. Description Price
19) BHPRO-MR158 1-5/8" is available on a 24" or 36" high unit. $83.95
20) BHPRO-MR412 4-1/2" is available on a 24" or 36" high unit. $92.86
OPTION
Model No. Description Sleeve Diameter Overall Length Sleeve Length For Use With Price
21) BAS-383 Concrete Anchor Bolts Installation Hardware (Single) ⅜" 3" 1" 2" Diameter BHPRO series $11.42

OPTION (continued)
Model No. Description Sleeve Diameter Overall Length Sleeve Length For Use With Price
22) BAS-344 Concrete Anchor Bolts Installation Hardware (Single) ¾" 4¼" 2" 4" Diameter BHPRO series $12.69
23) BAS-383-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ⅜" 3" 1" 2" Diameter BHPRO series $16.51
24) BAS-344-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ¾" 4¼" 2" 4" Diameter BHPRO series $25.41
