Parking Curb

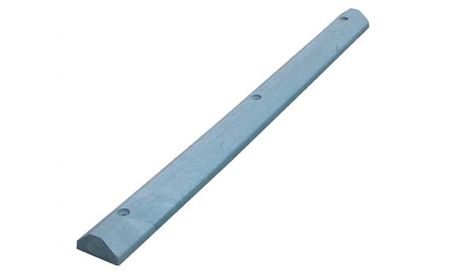

Car Stop Curb - Plastic Vehicle Stop - BCS series

Beacon® BCS Series

The Car Stop Curb - Plastic Vehicle Stop helps to protect people and property by working to control drivers. These units don't require costly maintenance or painting and are available in many colors to enable parking lot and parking garage color coding.
Starting at: $57.93

See chart below and click a model number

Product Details

  • Construction: The lightweight recycled plastic construction resists marring by salt, oil, sunlight, and chemicals and resists rotting, corrosion, and termite damage suffered by wooden curbs.
  • Size: Units range in width from 5-13/16" up to 9-3/4", in height from 3-1/4" to 6-3/4", and in length from 47-5/8" up to 93-11/16".
  • Installation: Parking Curb units feature easy, one-person installation.
  • Color: Models are available in yellow, blue, gray, or white.
  • Weight: Units weigh from 18 to 111 lbs.
  • Standard: Units have 2, 3, or 4 mounting holes. Please select corresponding mounting kits.
  • Options: Asphalt, concrete, and glue-down hardware kits sold separately. Asphalt kits include spike and butyl tape. Concrete kits include bolts, anchors, and washers. Glue down kits include anchor plates, bolts, washers, and T-nuts. Two part epoxy not included.

Documents

Options

Parking Curb - BCS Series
Model No. Composite Overall Size (W x H x L) # of Mounting Holes Mounting Hole Diameter Color Price

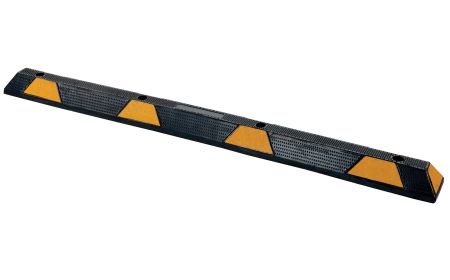

1) BCS-33-BL Recycled Rubber 5¾"x71¾"x4" 4 ½" Black and Yellow $102.18
2) BCS-33-BL-4 Recycled Rubber 5¾"x47¼"x4" 3 ½" Black and Yellow $78.04
3) BCS-33-BL-3 Recycled Rubber 5¾"x31½"x4" 3 ½" Black and Yellow $57.93

4) BCS-33-G Recycled Plastic 6"x72"x3¼" 3 ½" Grey $121.02
5) BCS-33-Y Recycled Plastic 6"x72"x3¼" 3 ½" Yellow $133.30
6) BCS-33-B Recycled Plastic 6"x72"x3¼" 3 ½" Blue $121.02
7) BCS-33-W Recycled Plastic 6"x72"x3¼" 3 ½" White $133.30

8) BCS-S48-G Recycled Plastic 6"x48"x4" 2 ½" Grey $116.14
9) BCS-S48-Y Recycled Plastic 6"x48"x4" 2 ½" Yellow $116.14
10) BCS-S48-B Recycled Plastic 6"x48"x4" 2 ½" Blue $116.14
11) BCS-S48-W Recycled Plastic 6"x48"x4" 2 ½" White $116.14

12) BCS-S72-G Recycled Plastic 6"x72"x4" 3 ½" Grey $152.63
13) BCS-S72-Y Recycled Plastic 6"x72"x4" 3 ½" Yellow $152.63
14) BCS-S72-B Recycled Plastic 6"x72"x4" 3 ½" Blue $152.63
15) BCS-S72-W Recycled Plastic 6"x72"x4" 3 ½" White $152.63

Parking Curb - BCS Series (continued)
Model No. Composite Overall Size (W x H x L) # of Mounting Holes Mounting Hole Diameter Color Price
16) BCS-TB96-G Recycled Plastic 10"x96"x7" 4 ½" Grey $571.48
17) BCS-TB96-Y Recycled Plastic 10"x96"x7" 4 ½" Yellow $571.48
18) BCS-TB96-B Recycled Plastic 10"x96"x7" 4 ½" Blue $571.48
19) BCS-TB96-W Recycled Plastic 10"x96"x7" 4 ½" White $571.48
OPTION
Model No. Description Surface Anchor Type Quantity Overall Size (L x W x H) Bolt Material Price
20) BCS-GD-2 Glue-Down Hardware Kit Asphalt / Concrete Anchor Plates, T-Nuts, Bolts and Washers 2 5"x5"x⅝" 100% Recycled Plastic / Steel $28.24
21) BCS-GD-3 Glue-Down Hardware Kit Asphalt / Concrete Anchor Plates, T-Nuts, Bolts and Washers 3 5"x5"x⅝" 100% Recycled Plastic / Steel $40.24
22) BCS-GD-4 Glue-Down Hardware Kit Asphalt / Concrete Anchor Plates, T-Nuts, Bolts and Washers 4 5"x5"x⅝" 100% Recycled Plastic / Steel $56.58
23) BCS-33-KIT-2 Hardware Kit Concrete Bolts, Anchors, Washers 2 ¾"x¾"x6⅜" Steel Q195 $21.24
24) BCS-33-KIT-3 Hardware Kit Concrete Bolts, Anchors, Washers 3 ¾"x¾"x6⅜" Steel Q195 $27.46
25) BCS-33-KIT-4 Hardware Kit Concrete Bolts, Anchors, Washers 4 ¾"x¾"x6⅜" Steel Q195 $41.56
Model No. Description Surface Anchor Type Quantity Size Bolts Quantity / Diameter / Length Size Flat Washer Quantity / Size Price
26) BCS-HD-AK-2 Hardware Kit Asphalt Bolts, Anchors, Washers 2 (2) 7/16"x4¼" (2) ½"x1⅜" OD $76.53
27) BCS-HD-AK-3 Hardware Kit Asphalt Bolts, Anchors, Washers 3 (3) 7/16"x4¼" (3) 7-16"x3½" (3) ½"x1⅜" OD $111.64
28) BCS-HD-AK-4 Hardware Kit Asphalt Bolts, Anchors, Washers 4 (4) 7/16"x4¼" (4) 7-16"x3½" (4) ½"x1⅜" OD $146.59
Model No. Description Surface Anchor Type Quantity Spike (L x W x H) Spike Head Width Tape Type Price
29) BCS-AK-2 Hardware Kit Asphalt Spike & Butyl Tape 2 1"x½"x12½" 1" Butyl $28.38
30) BCS-AK-3 Hardware Kit Asphalt Spike & Butyl Tape 3 1"x½"x12½" 1" Butyl $36.79
31) BCS-AK-4 Hardware Kit Asphalt Spike & Butyl Tape 4 1"x½"x12½" 1" Butyl $46.85

WarningPROP 65 WARNING

For California Residents: www.P65Warnings.ca.gov
Products on this page may lead to cancer or reproductive harm.


Complementary Products: For additional equipment designed to improve parking lot safety, please see Beacon speed bumps.
