Door Track Guard

Door Track Guard - Overhead Door Track Protectors - BDSP series

Beacon® BDSP Series

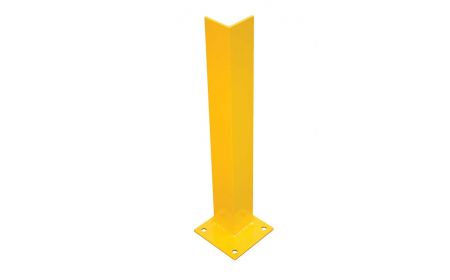

The Door Track Guard - Overhead Door Track Protectors help protect tracks of overhead doors from pallet trucks, fork trucks, and similar work vehicles. This product is used as a capital equipment protector.
Starting at: $64.95

See chart below and click a model number

Product Details

  • Construction: Features steel construction. The BDSP series is a vertical angle welded on a base plate designed for floor anchoring. The BDSP-WF series is an vertical angle including a wall flange allowing vertical anchoring in addition to the flooor anchoring.
  • Size: Door Track Guard models come in heights of 24", 36" and 48". The models have a 9/16" mounting hole diameter. The base plate is 6" square with a 3" notch out.
  • Installation: BDSP series designed for concrete floor anchoring. BDSP-WF series designed for concrerte floor and wall anchoring allowing for higher impact anchoring stranfgth.
  • Color: All models have a Beacon safety yellow powder coat finish.
  • Weight: The BDSP series units are available in weights of 13, 20, 27 lbs. and the BDSP-WF series units are 45 lbs. each.
  • Usage: Protects overhead door treacks from forktruck traffic.
  • Options: Door Track Guard has wedge anchor hardware available as an option and is sold separately.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Options

Door Track Guard - BDSP Series
Model No. Application Overall Width (in.) Overall Length (in.) Height Base Mounting Hole Qty. Base Mouting Hole Diameter (in.) Base Plate (in.) Flange Wall Mounting Hole Qty. Wall Mouting Hole Diameter (in.) Door Track Location looking out from dock Finish Price
1) BDSP-24 Light Weight 6 6 24¼ 3 9/16 6" Square with 3" Notch Out none none Left or Right Powdered Coat Yellow $64.95
2) BDSP-36 Light Weight 6 6 24¼ 3 9/16 6" Square with 3" Notch Out none none Left or Right Powdered Coat Yellow $69.88
3) BDSP-48 Light Weight 6 6 24¼ 3 9/16 6" Square with 3" Notch Out none none Left or Right Powdered Coat Yellow $84.11

4) BDSP-WF-48-BRL-YL Heavy Duty 10 8⅝ 48-1/6 3 ⅞ 10"x8⅝" with 6-5/16"x6-3/16" Notch Out 4 ½ Left and Right (SET) Powdered Coat Yellow $402.63
5) BDSP-WF-48-LH-YL Heavy Duty 10 8⅝ 48-1/6 3 ⅞ 10"x8⅝" with 6-5/16"x6-3/16" Notch Out 4 ½ Left Powdered Coat Yellow $205.66
6) BDSP-WF-48-RH-YL Heavy Duty 10 8⅝ 48-1/6 3 ⅞ 10"x8⅝" with 6-5/16"x6-3/16" Notch Out 4 ½ Right Powdered Coat Yellow $205.66
OPTION
Model No. Description Sleeve Diameter Overall Length Sleeve Length For Use With Price
7) BAS-125 Concrete Anchor Bolts Installation Hardware (Single) ½" 5½" 3" BDSP series $11.42
8) BAS-344 Concrete Anchor Bolts Installation Hardware (Single) ¾" 4¼" 2" BDSP-WF series $12.69
9) BAS-383 Concrete Anchor Bolts Installation Hardware (Single) ⅜" 3" 1" BDSP-WF series $12.69

10) BAS-125-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ½" 5½" 3" BDSP series $21.60
11) BAS-344-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ¾" 4¼" 2" BDSP-WF sereies $25.41
12) BAS-346-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ¾" 6¼" 3" BDSP-WF series $44.37
13) BAS-383-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ⅜" 3" 1" BDSP-WF series $16.51
Model No. Description Concrete Anchor Bolts Installation Hardware (Single) Overall Length Sleeve Length For Use With Price
14) BAS-346 Concrete Anchor Bolts Installation Hardware (Single) ¾" 6¼" 3" BDSP-WF series $15.24
