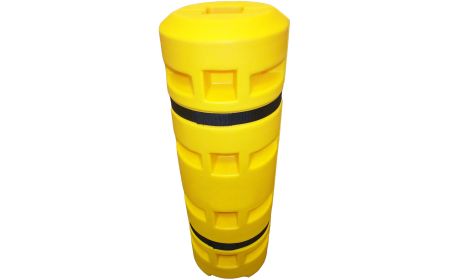

Structural Column Protectors - Column Bumper - BCS series

Beacon® BCS Series

The Structural Column Protectors - Column Bumper will give wrap-around protection from damage to building columns, tubing, or pipes. These units can be stacked two high for optimum protection.
Starting at: $344.50

See chart below and click a model number

Product Details

  • Construction: Constructed of linear low density polyethylene (LLDPE). UV Stabilized. FDA compliant 21 CRF 177.520/3.1 (base resin). Approved to UL94HB Burn Rate @1.5 MM. Hook & Loop fastener shear strength: 9.2 PSI (0.649KG/CM 2). All sizes wall thickness 0.25".
  • Size: This product has an outside overall height of 42 inches. Inside shapes are either square, rectangular, or round and range in size from 4" square up to 30" diameter.
  • Installation: Each unit is delivered as a 2 side unit, including 2 attaching (50 mm) nylon weave loop straps and hooks. Place the both halves around the column, secure the straps with the hooks.
  • Color: Structural Column Protectors are Beacon yellow.
  • Weight: Models weigh between 24 and 90 lbs.
  • Capacity: Impact strength at -40 degrees Celsius: 150 ft. - lbs. Stress-crack resistance: <1,000 hrs.per ASTM D-1693 (100% lgepal)
  • Standard: Structural Column Protectors come standard with nylon fasteners for assembly.
  • Options: Replacement straps available in (S,M,L,XL).
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: When fitting a structural column protector around a round pipe, confiirm the schedule pipe to verify the exact pipe size.

Documents
Structural Column Protectors - BCS Series
Model No. Inside Opening Fits Square Fits H Fits Round Outside Width Overall Height Type Style Color Fire Ext. Cutout Weight (lbs.) Price
1) BCS1442-4S 4.25"x4.25" Square up to 4" Up to 4"x4" up to 4" 14" 42" Column Sentry Small Yellow no 24.00 $344.50
2) BCS1442-6S 6.25"x6.25" Square <4" to 6" <4" to 6"x6" <4" to 6" diameter 14" 42" Column Sentry Small Yellow no 24.00 $344.50
3) BCS2442-6S 6.25"x6.25" Square up to 6" Up to 6"x6" up to 6" diameter 24" 42" Column Sentry Medium Yellow no 56.00 $486.54
4) BCS2442-8S 8.25"x8.25" Square <6" to 8" <6" to 8"x8" <6" to 8" diameter 24" 42" Column Sentry Medium Yellow no 56.00 $486.54
5) BCS2442-8SFE 8.00"x8.00" Square       24" 42" Column Sentry Medium Yellow YES 56.00 $486.54
6) BCS2442-8x10H 8.25"x10.25" Rectangle H N/A 8" web, up to 10" Flange   24" 42" Column Sentry Medium Yellow no 56.00 $486.54
7) BCS2442-9R 9" Round up to 6" Up to 6"x6" Up to 8⅝" 24" 42" Column Sentry Medium Yellow no 56.00 $486.54
8) BCS2442-10S 10.25"x10.25" Square <8" to 10" <8" to 10"x10" <8" to 10" diameter 24" 42" Column Sentry Medium Yellow no 56.00 $486.54
9) BCS2442-10x10H 10.25"x10.25" Square H N/A 10" Web up to 10" Flange N/A 24" 42" Column Sentry Medium Yellow no 56.00 $486.54
10) BCS2442-12S 12.25"x12.25" Square <10" to 12" <10" to 12x12" <10" to 12" diameter 24" 42" Column Sentry Medium Yellow no 56.00 $486.54
11) BCS2442-12SFE 12.00"x12.00" Square       24" 42" Column Sentry Medium Yellow YES 56.00 $486.54
12) BCS3342-14S 14.25"x14.25" Square <12" to 14" <12" to 14"x14" <12" to 14" 33" 42" Column Sentry Large Yellow no 75.00 $668.86
13) BCS3342-16S 16.25"x16.25" Square <14" to 16" <14" to 16"x16" <14" to 16" 33" 42" Column Sentry Large Yellow no 75.00 $668.86
14) BCS3842-18S 18.25"x18.25" Square <16" to 18" <16" to 18"x18" <16" to 18" 38" 42" Column Sentry Extra Large Yellow no 90.00 $852.24
15) BCS3842-20S 20.25"x20.25" Square <18" to 20" <18" to 20"x20" <18" to 20" 38" 42" Column Sentry Extra Large Yellow no 90.00 $852.24
16) BCS3842-12x24S 12.50"x24.75" Rectangle up to 12" square; up to 12"x24" rectangle up to 12" square up to 12" diameter 38" 42" Column Sentry Extra Large Yellow no 90.00 $852.24
17) BCS4442-30R 30.25" Round up to 21" square up to 21"x21" square up to 30" diameter 44" 42" Column Sentry Extra Large Yellow no 90.00 $907.36
