Handrail Systems

Handrail Systems - BSQ series

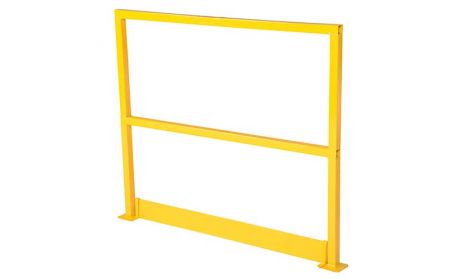

Beacon® BSQ-TB Series

The Handrail Systems are an excellent way to protect workers, buildings, and machinery. These units are ideal for walkways, loading docks, mezzanines, and floor openings. This series is available with or without toe boards.
Starting at: $186.81

See chart below and click a model number

Product Details

  • Construction: These units are constructed from steel.
  • Size: This series features 1-5/8" square tube, a 42" overall height and a 21" mid-rail height. The units come in various lengths ranging from 48" to 120". Optional connection tubes measure 1-1/4" in diameter. Toe boards are 4" high and are 43-1/2" to 111" long.
  • Installation: Hardware is not included with units unless noted. Railing sections ending in -HWR come with hardware standard. Options BCSEC, BM-BUMP, and BC-CON include hardware as well.
  • Color: This series is coated with a highly visible Beacon safety yellow powder coat finish.
  • Weight: This product is available in a variety of weights ranging from 42 to 84 lbs. Options weigh from 1 lb. to 43 lbs.
  • Standard: The BSQ series includes 8 bolt holes for installation.
  • Options: Handrail Systems options include bolted-on wire mesh, connection tubing and corner connectors, 4" high toe boards, sliding gates for easy access, bumpers, anchor bolts, and end caps. Toe boards have 2 brackets, 4" long x 3/4" high and 7/16" in diameter.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Series BCSEC and BC-CON are sold as pairs. Toe board model BTOE-B-120-N is sold as two pieces, each 55-1/2" long.

Documents

Options

Handrail Systems - With Toeboard - BSQ-TB Series
Model No. Square Tubing Diameter Overall Height Mid-Rail Height Length Price
1) BSQ-48-TB 1⅝" 42" 21" 48" $226.26
2) BSQ-60-TB 1⅝" 42" 21" 60" $283.58
3) BSQ-72-TB 1⅝" 42" 21" 72" $315.35
4) BSQ-84-TB 1⅝" 42" 21" 84" $373.94
5) BSQ-96-TB 1⅝" 42" 21" 96" $419.59
6) BSQ-108-TB 1⅝" 42" 21" 108" $478.12
7) BSQ-120-TB 1⅝" 42" 21" 120" $523.97
Handrail Systems - No Toeboard - With Hardware - BSQ-HWR Series
Model No. Square Tubing Diameter Overall Height Mid-Rail Height Length Price
8) BSQ-48-TB-HWR 1⅝" 42" 21" 48" $226.26
9) BSQ-72-TB-HWR 1⅝" 42" 21" 72" $315.35
10) BSQ-96-TB-HWR 1⅝" 42" 21" 96" $419.59

Handrail Systems - No Toeboard - With Hardware - BSQ-HWR Series (continued)
Model No. Square Tubing Diameter Overall Height Mid-Rail Height Length Price
11) BSQ-48-HWR 1⅝" 42" 21" 48" $186.81
12) BSQ-72-HWR 1⅝" 42" 21" 72" $256.77
13) BSQ-96-HWR 1⅝" 42" 21" 96" $339.57
Handrail Systems - No Toeboard - BSQ Series
Model No. Square Tubing Diameter Overall Height Mid-Rail Height Length Price
14) BSQ-48 1⅝" 42" 21" 48" $186.81
15) BSQ-60 1⅝" 42" 21" 60" $227.56
16) BSQ-72 1⅝" 42" 21" 72" $256.77
17) BSQ-84 1⅝" 42" 21" 84" $303.82
18) BSQ-96 1⅝" 42" 21" 96" $339.57
19) BSQ-108 1⅝" 42" 21" 108" $398.10
20) BSQ-120 1⅝" 42" 21" 120" $432.40
OPTION
Model No. Description Overall Height Length Price
21) BWM-48 Wire Mesh (bolted on) 22" 48" $104.18
22) BWM-60 Wire Mesh (bolted on) 22" 60" $110.47
23) BWM-72 Wire Mesh (bolted on) 22" 72" $120.73
24) BWM-84 Wire Mesh (bolted on) 22" 84" $134.67
25) BWM-96 Wire Mesh (bolted on) 22" 96" $151.24
26) BWM-108 Wire Mesh (bolted on) 22" 108" $167.83
27) BWM-120 Wire Mesh (bolted on) 22" 120" $182.99
Model No. Description Overall Height Length Price
28) BTOE-B-48-N 4" High Toeboard 4" 43½" $51.96
29) BTOE-B-60-N 4" High Toeboard 4" 55½" $62.30
30) BTOE-B-72-N 4" High Toeboard 4" 67½" $66.07
31) BTOE-B-84-N 4" High Toeboard 4" 79½" $78.69
32) BTOE-B-96-N 4" High Toeboard 4" 91½" $83.82
33) BTOE-B-108-N 4" High Toeboard 4" 99" $106.78
34) BTOE-B-120-N 4" High Toeboard 4" 111" $114.44
Model No. Description Square Tubing Diameter Length Price Per Price
35) BCSEC-48 Connecting Tube with Hardware 1¼" 47⅞"   $133.43
36) BCSEC-60 Connecting Tube with Hardware 1¼" 59⅞"   $146.10
37) BCSEC-72 Connecting Tube with Hardware 1¼" 71⅞"   $151.33
38) BCSEC-84 Connecting Tube with Hardware 1¼" 83⅞"   $166.58
39) BCSEC-96 Connecting Tube with Hardware 1¼" 95⅞"   $169.14
40) BCSEC-108 Connecting Tube with Hardware 1¼" 108"   $213.51
41) BCSEC-120 Connecting Tube with Hardware 1¼" 120"   $277.19
Model No. Description Price
42) BC-CON Corner Connectors with hardware (Price per pair) $52.11
43) BS-GATE-60 60" Sliding Gate $251.70
44) BM-BUMP 72" long x 10" high plastic bumper (hardware included) $211.00
45) BSQ-CAP Black End Cap $3.63
Model No. Description Sleeve Diameter Overall Length Sleeve Length For Use With Price
46) BAS-383 Concrete Anchor Bolts Installation Hardware (Single) ⅜" 3" 1" BSQ series $11.42
47) BAS-383-4PK Concrete Anchor Bolts Installation Hardware (4-Pack) ⅜" 3" 1" BSQ series $21.60
