Gas Cylinder Cabinet

Gas Cylinder Cabinet - BCYL series

Beacon® BCYL-H Series

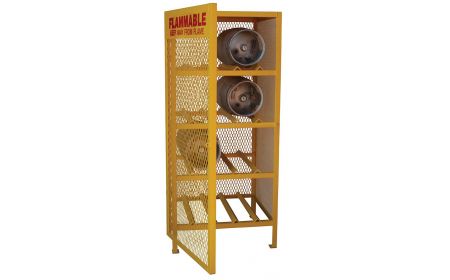

The security Gas Cylinder Cabinet is designed to safely store gas cylinders and LP tanks. Lockable doors allow you to secure access to cylinders (padlock is not included). Lag holes on the base provides the ability to secure cylinders. Door features red lettering which reads either "Flammable - No Smoking" (US version) or "No Smoking" in English and French (Canadian version). Vertical units include chains for securing cylinders.
Starting at: $698.23

See chart below and click a model number

Product Details

  • Construction: Top of all units made of solid sheet steel; sides are made of expanded steel mesh. Bottom of -CA units are also solid sheet steel.
  • Size: Models range in width from 30" to 68", in length from 30" to 39-5/8", and in height from 36-7/8" to 72".
  • Color: Assembled units are painted Beacon safety yellow; unassembled units feature a powder-coat finish.
  • Weight: Units weigh from 150 to 600 lbs.
  • Capacity: Capacity is based on size of cylinders; models can accommodate from 4 to 20 cylinders.
  • Standard: Both US and Canadian Gas Cylinder Cabinet units meet OSHA sec. 1910.110 and NFPA 58; Canadian version also meets CSA B-149.2.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents
Horizontal Gas Cylinder Cabinet (For USA only) - BCYL-H Series
Model No. Cylinder Capacity Overall Size (W x L x H) Type Finish Price
1) BCYL-H-4-KD 4 33"x38"x37" Unassembled Powder Coat $698.23
2) BCYL-H-8-KD 8 30"x31-13/16"x68¼" Unassembled Powder Coat $1,140.91
3) BCYL-H-16-KD 16 65"x38"x70" Unassembled Powder Coat $2,288.28

4) BCYL-H-4 4 33"x38"x37" Assembled Safety Yellow Paint $825.35
5) BCYL-H-8 8 30"x31-13/16"x68¼" Assembled Safety Yellow Paint $1,268.09
6) BCYL-H-16 16 65"x38"x70" Assembled Safety Yellow Paint $2,415.38
Vertical Gas Cylinder Cabinet (For USA only) - BCYL-V Series
Model No. Cylinder Capacity Overall Size (W x L x H) Type Finish Price
7) BCYL-V-1020-KD 10-20 60"x38"x72" Unassembled Powder Coat $1,848.15
8) BCYL-V-510 5-10 30"x31-13/16"x63¼" Assembled Safety Yellow Paint $1,156.15
9) BCYL-V-1020 10-20 60"x38"x72" Assembled Safety Yellow Paint $2,028.75
Combination Horizontal/Vertical Gas Cylinder Cabinet (For USA only) - BCYL-H-V Series
Model No. Cylinder Capacity Overall Size (W x L x H) Type Finish Price
10) BCYL-H8-V510 8 horizontal, 10 vertical 30"x31-13/16"x68¼" Assembled Safety Yellow Paint $1,844.27
LP Gas Cylinder Cabinet (For Canada only) - BCYL-LP-CA Series
Model No. Cylinder Capacity Overall Size (W x L x H) Type Finish Number of Shelves Price
11) BCYL-LP-4-CA 4 33-7/16"x39⅝"x36⅞" Assembled Safety Yellow Paint 1 $1,050.48
12) BCYL-LP-8-CA 8 43"x30"x72" Assembled Safety Yellow Paint 1 $1,498.39
13) BCYL-LP-16-CA 16 68"x30"x72" Assembled Safety Yellow Paint   $2,155.94
Other Gas Cylinder Cabinet (For Canada only) - BCYL-G-CA Series
Model No. Cylinder Capacity Overall Size (W x L x H) Type Finish Number of Shelves Price
14) BCYL-G-8-CA 8 43"x30"x72" Assembled Safety Yellow Paint - $1,434.77
15) BCYL-G-12-CA 12 68"x30"x 72" Assembled Safety Yellow Paint - $2,264.08
