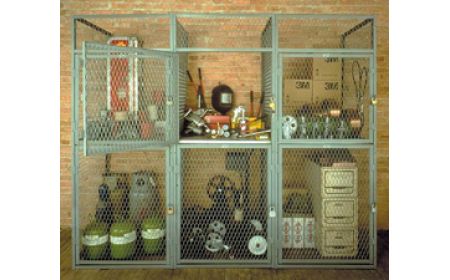

Wire Mesh Lockers

Beacon® BST133 Series

Product Details

• Construction: Panels feature 13-gauge steel mesh with 1-1/2" openings. Inner door frames are 12-gauge steel with 1-1/2" x 1" angle. Outer door frames are 14-gauge steel with 1-1/2" x 1" channel.
• Size: Widths range from 3' to 4" wide, from 3' to 5' deep, and all are 90" high. Door section height is 90". Single tier door has three 2" x 2" steel pin butt hinges. Each double tier door has two 2" x 2" steel pin butt hinges.
• Installation: When installing against an existing wall, optional back panel is not required for single-row lockers. For double row configurations, one back panel is shared between the rows. All hardware is included. MIG-welded and pre-punched for easy installation.
• Color: Units are powder coated Beacon machine gray, except for galvanized pieces.
• Weight: 8 to 190 lbs.
• Standard: Single tier units feature two-point contact with concealed drop-rod. Double tier units include 18-gauge galvanized sheet metal shelf, 1 padlock hasp, and 2 door stops per door.
• Options: Top panel option: 1-1/2", 13-gauge expanded metal with clips with 1-1/4" x 1-1/4", 14-gauge slotted angle. Back panel options: galvanized 18-gauge sheet metal or 13-gauge expanded metal.
• Materials: Wire Mesh Lockers side panel frames are 14-gauge 1-1/4" x 1-1/4" angle steel with horizontal reinforcement. Doors are pre-hung with transom.
• Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
• Note: Single tier starter units have 1 door and 2 end run panels; add-on units have 1 door and 1 side panel. Double tier starter units have 1 door, 2 end run panels, and 1 shelf; add-on units have 1 door, 1 side panel, and 1 shelf.
