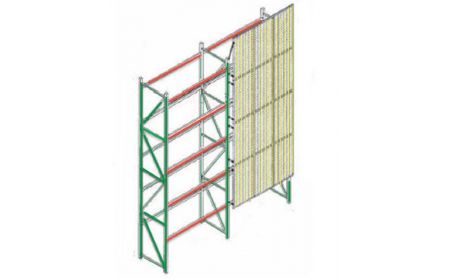

Pallet Rack System

Name: Pallet Rack System
Brand: Beacon
Price: 20.16 USD
Availability: InStock

Beacon® BPRTD series

The Pallet Rack System is utilized in warehouses, factories, and distribution centers to provide a storage solution for assets. The system makes it easy to retrieve pallets so workers can quickly package and ship goods. This unit allows users to change and design the layout required if each application.

Starting at: $20.16

See chart below and click a model number

Product Details

Construction: The Pallet Rack System features a scratch and rust resistance steel construction for commercial and industrial use. Baked in powder coated toughness comes standard.
Size: Overall frame height measures 120”, 144”, 168” 192” or 216” suitable for all applications.
Installation: This unit is designed for easy adaptability to specific layout installations.
Weight: This unit has different models that weigh 66 lbs. to 226 lbs.
Usage: Pallet Rack System solves the storage and retrieval needs faced by most industries today.
Capacity: Pallet rack frames have capacities that range from 19,380 lb. to 24,000 lb. Pallet Rack step beams has a capacity that ranges from 5,000 lb. to 7,000 lb.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents

Pallet Rack System - Frame - BPRTD series
Model No.	Frame Height	Frame Depth	Capacity / Each (lbs.)	Price
1) BPRTD-10-42-19	120"	42"	19,380	$264.39
2) BPRTD-10-42-24	120"	42"	24,000	$335.74

3) BPRTD-12-42-19	144"	42"	19,380	$312.76
4) BPRTD-12-42-24	144"	42"	24,000	$419.71
Pallet Rack System - Frame - BPRTD series (continued)
Model No.	Frame Height	Frame Depth	Capacity / Each (lbs.)	Price
5) BPRTD-14-42-19	168"	42"	19,380	$331.84
6) BPRTD-14-42-24	168"	42"	24,000	$508.67

7) BPRTD-16-42-19	192"	42"	19,380	$401.85
8) BPRTD-16-42-24	192"	42"	24,000	$539.14

9) BPRTD-18-42-24	216"	42"	24,000	$431.18
Pallet Rack System - Step Beam - BBEAM series
Model No.	Frame Height	Frame Depth	Capacity / Each (lbs.)	Price
10) BBEAM-S-850	6"	96"	5,000	$142.35
11) BBEAM-S-870	6"	96"	7,000	$181.82

12) BBEAM-S-960	6"	108"	6,000	$183.14
13) BBEAM-S-970	6"	108"	7,000	$190.74

14) BBEAM-S-1050	6"	120"	5,000	$207.15
15) BBEAM-S-1070	6"	120"	7,000	$274.62
Pallet Rack System - Step Beam - BBEAM series (continued)
Model No.	Frame Height	Frame Depth	Capacity / Each (lbs.)	Price
16) BBEAM-S-1250	6"	144"	5,000	$251.79
17) BBEAM-S-1260	6"	144"	6,000	$314.06
Pallet Rack System - Frame Spacer - BFSR series
Model No.	Description		Frame Spacer	Price
18) BFSR-6	FRAME SPACER-SEPARATES BACK TO BACK FRAMES (HARDWARE INCLUDED)		6"	$21.60
19) BFSR-12	FRAME SPACER-SEPARATES BACK TO BACK FRAMES (HARDWARE INCLUDED)		12"	$20.16
