Wire Mesh Containers

Wire Mesh Containers - BVWIRE series

Beacon® BVWIRE Series

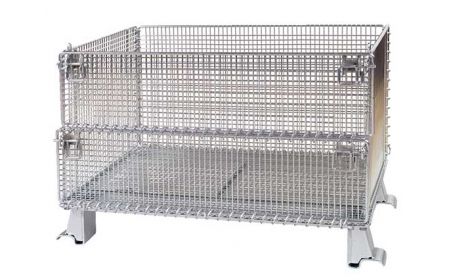

The Wire Mesh Containers have a half-drop gate for easy access to stored goods. This unit is collapsible, making it easy to store and transport. The corners feature eyelets for easy stacking and added rigidity. The legs wrap and are welded around the base to prevent sharp edges. Units may be stacked 4 high. To allow for speedy loading and unloading of materials, the front gate drops halfway down.
Starting at: $356.12

See chart below and click a model number

Product Details

  • Construction: Units feature all-steel construction with galvanized welded wire mesh. Wire mesh is either 3 or 11 gauge with mesh openings of 1/2" x 1/2" or 2" x 2".
  • Size: Units range in width from 20" to 40", in depth from 32" to 48", and in height from 21" to 42". Units have 4" underneath clearance for transportation by fork or pallet trucks.
  • Weight: 58, 129, or 172 lbs.
  • Capacity: Wire Mesh Containers have a capacity of 1,000 or 4,000 lbs.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Documents



Wire Mesh Containers - BVWIRE Series
Model No. Capacity (LBS) Overall Size (W x D x H) Wire Gauge Mesh Opening Underneath Clearance Price
1) BVWIRE-32H 1,000 20"x32"x21" 11 ½"x½" 4" $356.12
2) BVWIRE-40H 4,000 32"x40"x34" 3 2"x2" 4" $634.55
3) BVWIRE-48H 4,000 40"x48"x42" 3 2"x2" 4" $674.03
