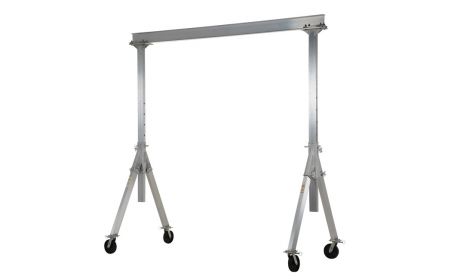

Aluminum Gantry Crane with Air Tires

Name: Aluminum Gantry Crane with Air Tires
Brand: Bear Claw
Price: 4022.01 USD
Availability: InStock

Aluminum Gantry Crane with Air Tires - BAHA-PNU series

Bear Claw® BAHA-PNU Series

The Aluminum Gantry Crane with Air Tires are designed to work inside or outside to allow rolling over rough surfaces. The pneumatic casters and aluminum frame allows for easy movement from one work station to another. Lightweight but can withstand harsh environments.

Starting at: $4,022.01

See chart below and click a model number

Product Details

Construction: Aluminum Gantry Crane with Air Tires features aluminum construction for lightweight mobility.
Size: Adjustable Height with a service range height of 6’-2” minimum and a 12’-6” maximum under I-beam. The height adjustment is ideal for manufacturing and maintenance facilities.
Installation: It is the responsibility of the operator to inspect the unit prior to operation and frequently to ensure safe operation. Please see ASME B30.17 for more details.
Weight: This series has a weight range from 254 lbs. to 368 lbs. designed to be assembled and disassembled at the job site.
Usage: Engineered for interior and exterior harsh environments. Do not move while loaded.
Capacity: Models are designed with a 1,500 lb. capacity.
Standard: Aluminum Gantry Crane with Air Tires comes standard with pneumatic tires for smooth or rough terrain preventing marring during movement.
Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
Note: The usable distance between uprights is overall I-Beam length minus 18”. Usable trolley travel length is overall I-Beam length minus 23-3/4”.

Documents

Prop. 65 WARNING

Bear Claw® Aluminum Gantry Crane with Air Tires - BAHA-PNU Series
Model No.	Capacity (lbs.)	I-Beam Length & Height	I-Beam Flange Width	Under I-Beam Range	Base Width	Note	Price
1) BAHA-15-8-8-PNU	1,500	8'-6"	3-5/16"	6'-2" to 8'-8"	53 -¾"	A	$5,057.29
2) BAHA-15-8-10-PNU	1,500	8'-6"	3-5/16"	8'-2" to 10'-8"	53 -¾"	A	$4,731.66
3) BAHA-15-8-12-PNU	1,500	8'-6"	3-5/16"	10' to 12'-6"	53 -¾"	A	$5,025.53

4) BAHA-15-10-8-PNU	1,500	10'-6"	3-5/16"	6'-2" to 8'-8"	53 -¾"	A	$4,243.30
5) BAHA-15-10-10-PNU	1,500	10'-6"	3-5/16"	8'-2" to 10'-8"	53 -¾"	A	$4,022.01
6) BAHA-15-10-12-PNU	1,500	10'-6"	3-5/16"	10' to 12'-6"	53 -¾"	A	$4,346.37
Bear Claw® Aluminum Gantry Crane with Air Tires - BAHA-PNU Series (continued)
Model No.	Capacity (lbs.)	I-Beam Length & Height	I-Beam Flange Width	Under I-Beam Range	Base Width	Note	Price
7) BAHA-15-12-8-PNU	1,500	12'-8"	4"	6'-2" to 8'-8"	53 -¾"	A	$4,230.56
8) BAHA-15-12-10-PNU	1,500	12'-8"	4"	8'-2" to 10'-8"	53 -¾"	A	$4,570.18
9) BAHA-15-12-12-PNU	1,500	12'-8"	4"	10' to 12'-6"	53 -¾"	A	$4,198.77

10) BAHA-15-15-8-PNU	1,500	15'-8"	4-3/16"	6'-2" to 8'-8"	53 -¾"	A	$4,855.11
11) BAHA-15-15-10-PNU	1,500	15'-8"	4-3/16"	8'-2" to 10'-8"	53 -¾"	A	$4,529.52
12) BAHA-15-15-12-PNU	1,500	15'-8"	4-3/16"	10' to 12'-6"	53 -¾"	A	$4,823.35
Notes: A: * Hoist & Trolley sold separately. Assembly by others*.
