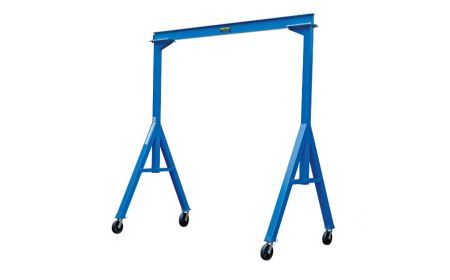

Portable Gantry Crane

Portable Gantry Crane - Rolling Hoist - BFHS series

Bear Claw® BFHS Series

The Portable Gantry Crane - Rolling Hoist is designed to be an industrial portable, fixed height crane. The series is designed with a fixed head beam to be more economical than the gantry cranes with adjustable head beams.
Starting at: $2,538.82

See chart below and click a model number

Product Details

  • Construction: This unit is constructed from heavy duty solid steel components.
  • Size: Fixed height design. The overall beam length ranges from 8' to 20' and the beam height ranges from 4" to 12". The flange width ranges from 2.66" up to 6", and the base width ranges from 46-1/2" to 76".
  • Service Range: Since this unit has a fixed height head beam, the service range is classified fixed at 10' under the head beam.
  • Installation: Note: All units are shipped disassembled. All products should be inspected frequently to ensure safe operation. Final testing and inspecting is left to the end user after final assembly has been completed. For further details see ASME B30.17.
  • Color: Portable Gantry Crane models feature a blue finish.
  • Operation: These models are not to be moved while loaded.
  • Capacities: The unit is available in six different capacities: 500 lbs., 2,000 lbs., 4,000 lbs., 6,000 lbs., 8,000 lbs., or 10,000 lbs.
  • Standard: The large casters allow for movement of this series. The unit is supplied with large 8" diameter 4 position locking swivel phenolic casters with roller bearings to facilitate easy movement from one work area to another.
  • Options: Portable Gantry Crane options include power traction drive with 3-button hand control, total locking casters, V-groove casters and V-groove track.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: Hoist and trolley sold separately.

Documents


Options


Bear Claw® Portable Gantry Crane - BFHS Series
Model No. Under I-Beam to Ground Beam Length Beam Height Base Width Flange Width Capacity (LBS) Note Price
1) BFHS-2-10 10' 10' 6" 64½" 4" 2,000 A $2,571.86
2) BFHS-2-15 10' 15' 6" 64½" 4" 2,000 A $2,739.74
3) BFHS-2-20 10' 20' 8" 64½" 4" 2,000 A $3,034.80

4) BFHS-4-10 10' 10' 8" 64½" 4" 4,000 A $2,538.82
5) BFHS-4-15 10' 15' 8" 64½" 4" 4,000 A $2,836.37
6) BFHS-4-20 10' 20' 10" 64½" 4" 4,000 A $3,186.19

Bear Claw® Portable Gantry Crane - BFHS Series (continued)

Model No. Under I-Beam to Ground Beam Length Beam Height Base Width Flange Width Capacity (LBS) Note Price
7) BFHS-6-10 10'-1" 10' 8" 65⅝" 4" 6,000 A $3,402.51
8) BFHS-6-15 10'-1" 15' 10" 65⅝" 4" 6,000 A $3,839.98
9) BFHS-6-20 10'-1" 20' 10" 65⅝" 6½" 6,000 A $4,455.68

10) BFHS-8-10 10' 10' 10" 76" 4" 8,000 A $4,104.71
11) BFHS-8-15 10' 15' 10" 76" 4" 8,000 A $4,359.02
12) BFHS-8-20 10' 20' 12" 76" 6½" 8,000 A $5,530.61

13) BFHS-10-10 10' 10' 10" 64½" 4" 10,000 A $5,157.77

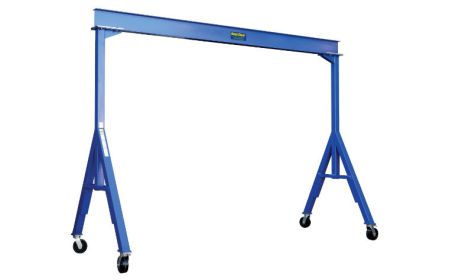

14) BFHS-10-15 10' 15' 12" 64½" 4" 10,000 A $6,193.24
Notes:
A: * Deduct 12" for Distance Between Upright. * Hoist & Trolley sold separately*. *Assembly by others*.
OPTION
Model No. Description Note Price
15) BFHS-GPTD-2 Power Traction Drive - 2,000 to 4,000 lbs. capacity with 3-button hand control   $10,198.90
16) BFHS-GPTD-4 Power Traction Drive - 6,000 to 8,000 lbs. capacity with 3-button hand control   $12,150.14
17) BFHS-2/4-TLC Total Locking Casters for 2,000 and 4,000-lb. capacity cranes (set of 4)   $543.04
18) BFHS-6/8-TLC Total Locking Casters for 6,000 and 8,000-lb. capacity cranes (set of 4)   $699.60
19) BFHS-2/4-V V-Groove Casters for 2,000 and 4,000-lb. capacity cranes (set of 4)   $311.64
20) BFHS-6/8-V V-Groove Casters for 6,000 and 8,000-lb. capacity cranes (set of 4)   $905.66
21) BFHS-V-TRACK 10-foot section of V-groove track for V-groove casters   $169.18
Notes:
A: * Deduct 12" for Distance Between Upright. * Hoist & Trolley sold separately*. *Assembly by others*.
