Hydraulic Edge of Dock Leveler

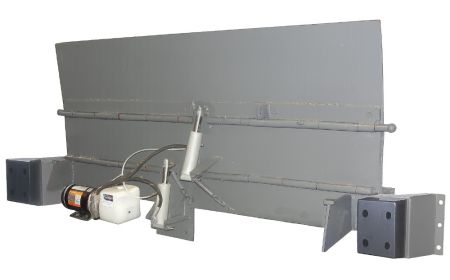

Hydraulic Edge of Dock  Leveler- BHED Series

Beacon® BHED Series

The durable and heavy-duty Hydraulic Edge of Dock Leveler compensates for uneven heights between dock and truck. This type of unit is commonly used in distribution centers. The BHED series features the ease of push of a button control to operate the leveler providing efficiency and safety.
Starting at: $4,809.94

See chart below and click a model number

Product Details

  • Construction: The series is constructed of heavy-duty steel.
  • Size: Models feature deck widths of 66", 72", 78” or 84". This series has a span of 27-3/4".
  • Operating Range: Features 5" above and 5" below the loading dock as operating range.
  • Electrical: 115 V AC, 1 Phase, 60 Hz is standard. Other electrical options are available.
  • Installation: Edge of dock levelers are anchored to the edge of the loading dock either by totally welding the unit to the dock edge (via an embedded C channel) or by some combination of weld on / bolt on such as an embedded curb angle.
  • Color: Finish - Enamel base gray paint.
  • Operation: These units are operated with a push-button control.
  • Capacities: Available in capacities of 20,000, 25,000, 30,000 or 35,000 lbs.
  • Standard: The Hydraulic Edge of Dock comes standard with a 15" hinged lip as well as dock bumpers.
  • Limited Warranty: Limited warranty: 2 years on structure and 2 years on parts. Extended warranties available.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.
  • Note: There is no pit work required. The levelers simply weld to the building 8" imbedded channel or to the optional formed angle and approach plate.

Documents



Hydraulic Edge of Dock Leveler - BHED Series
Model No. Capacity Span Overall Width Deck Width Voltage Controls Price
1) BHED-6620 20,000 lbs. 27-¾" 104" 66" 115 Vac, 1 Ph, 60 Hz. Selector Switch $4,809.94
2) BHED-7220 20,000 lbs. 27-¾" 110" 72" 115 Vac, 1 Ph, 60 Hz. Selector Switch $4,884.73
3) BHED-7820 20,000 lbs. 27-¾" 116" 78" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,004.05
4) BHED-8420 20,000 lbs. 27-¾" 122" 84" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,073.50

5) BHED-6625H 25,000 lbs. 27-¾" 104" 66" 115 Vac, 1 Ph, 60 Hz. Selector Switch $4,884.73
6) BHED-7225H 25,000 lbs. 27-¾" 110" 72" 115 Vac, 1 Ph, 60 Hz. Selector Switch $4,977.34
7) BHED-7825H 25,000 lbs. 27-¾" 116" 78" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,098.43
8) BHED-8425H 25,000 lbs. 27-¾" 122" 84" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,171.44

9) BHED-6630HX 30,000 lbs. 27-¾" 104" 66" 115 Vac, 1 Ph, 60 Hz. Selector Switch $4,931.04
10) BHED-7230HX 30,000 lbs. 27-¾" 110" 72" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,005.83
11) BHED-7830HX 30,000 lbs. 27-¾" 116" 78" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,150.07
12) BHED-8430HX 30,000 lbs. 27-¾" 122" 84" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,215.96

Hydraulic Edge of Dock Leveler - BHED Series (continued)

Model No. Capacity Span Overall Width Deck Width Voltage Controls Price
13) BHED-6635HXX 35,000 lbs. 27-¾" 104" 66" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,171.44
14) BHED-7235HXX 35,000 lbs. 27-¾" 110" 72" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,248.02
15) BHED-7835HXX 35,000 lbs. 27-¾" 116" 78" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,652.26
16) BHED-8435HXX 35,000 lbs. 27-¾" 122" 84" 115 Vac, 1 Ph, 60 Hz. Selector Switch $5,787.60
