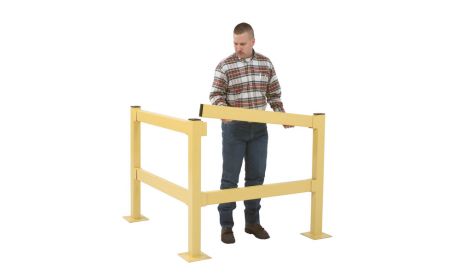

Modular Safety Barriers

Modular Safety Barriers - BMPB series

Beacon® Modular Safety Barriers

Modular Safety Barriers are a simple economical steel rectangle and square tube design. Designed to protect equipment, personnel, tool cribs, electrical panels, interior plant offices, interior building perimeter walls, cooling equipment and production line tool facilities.
Starting at: $126.14

See chart below and click a model number

Product Details

  • Construction: Steel Tube Rails are 11 gauge steel, 4" high x 2 " deep with lengths of 2' to 12'. End and corner 3" x 3" posts structurals are available in 20" and 42" high. Post includes a welded 8" x 8" pre-drilled 1/4" thick baseplate.
  • Installation: Modular Safety Barriers on site assembly required by others. Fasteners are not included with order. Tube Railing is easily assembled utilizing basic hand tools and a concrete drill for post anchor installation to the floor. Base plate includes 5/8" holes.
  • Color: Standard color is safety yellow powder coat. Other available colors are black, grey, blue and orange.
  • Standard: Post enclosure includes plastic insert caps for a smooth finished look.
  • Options: Modular Safety Barriers offer a floor rail 2" off ground to deflect pallet jack entrance.
  • Surcharge: Due to supply chain disruption, inflation or material shortages - tariffs or surcharges may apply to current published pricing. Some longer lead times may be incurred. Freight charges will be added to published pricing.

Modular Safety Barriers
Model No. Rail Thickness Length Width Height Price
1) BMPBR2 Steel Tube Rail 11 Guage 2' 2" 4" $126.14
2) BMPBR3 Steel Tube Rail 11 Guage 3' 2" 4" $155.82
3) BMPBR4 Steel Tube Rail 11 Guage 4' 2" 4" $178.08
4) BMPBR5 Steel Tube Rail 11 Guage 5' 2" 4" $207.76
5) BMPBR6 Steel Tube Rail 11 Guage 6' 2" 4" $230.02
6) BMPBR7 Steel Tube Rail 11 Guage 7' 2" 4" $239.30
7) BMPBR8 Steel Tube Rail 11 Guage 8' 2" 4" $254.14
8) BMPBR9 Steel Tube Rail 11 Guage 9' 2" 4" $276.40
9) BMPBR10 Steel Tube Rail 11 Guage 10' 2" 4" $294.94
10) BMPBR11 Steel Tube Rail 11 Guage 11' 2" 4" $328.34
11) BMPBR12 Steel Tube Rail 11 Guage 12' 2" 4" $345.03
Posts
Model No. Description Height Tube Size Base Plate Size Insert Price
12) BMPBP20 Steel Tube Inline Post 20" 3" x 3" ¼" x 8" x 8" Plastic Cap $191.06
13) BMPBP20E Steel Tube End Post 20" 3" x 3" ¼" x 8" x 8" Plastic Cap $191.06
14) BMPBP20C Steel Tube Corner Post 20" 3" x 3" ¼" x 8" x 8" Plastic Cap $191.06
15) BMPBP42D Steel Tube Inline Post 42" 3" x 3" ¼" x 8" x 8" Plastic Cap $252.28
16) BMPBP42DE Steel Tube End Post 42" 3" x 3" ¼" x 8" x 8" Plastic Cap $252.28
17) BMPBP42DC Steel Tube Corner Post 42" 3" x 3" ¼" x 8" x 8" Plastic Cap $252.28
Swing Gate
Model No. Description Gate Size Thickness Number of Posts Price
18) BMPBSG36 Steel Tube Retangular Swing Gate 36" 11 Guage 1 $775.39
19) BMPBSG48 Steel Tube Retangular Swing Gate 48" 11 Guage 1 $973.88
